Hubbell Wiring Device-Kellems

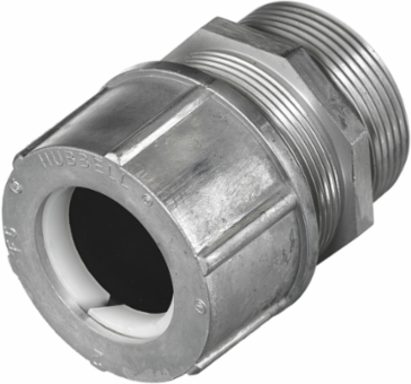

Hubbell Wiring Device-Kellems SHC1089 Straight Male Cord Connector, 2.06-2.19 Inch, 3 Inch, Aluminum

Straight Male Cord Connector, 2.06-2.19 Inch, 3 Inch, Aluminum
  • MPN: SHC1089
  • UPC: 783585200897
  • PPN: HBL-SHC1089
  • UNSPSC: 39121431

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$283.28/ EA

Description

Kellems Wire Management, Cord Connectors, Straight Male, 2.06-2.19", 3", Aluminum

Features

  • Cast aluminum cord connector, one-piece design with machined threads
  • Lock nuts sold separately
  • Standard Product

Specifications

Specifications

Country of Origin
United States
Hub Size
3"
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC;Environmental - Operating Temperatures - -30°F to +240°F (-34°C to +115°C)
Conductor Range
2.06-2.19 in (52.4- 55.6 mm)
NEMA Rating
NEMA Type 4, 4X, 12 and 13
Special Features
Standard Product
Temperature Rating
Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
Engineering Drawing 1 Display Text
SHC1089 AutoCAD Drawing
General Literature Asset 2 Display Text
Pulp & Paper Solutions
Display Size
3" NPT
Number Of Conductors
Single
Description - Invoice
CORDCON, STR ML, 2.06-2.19"; 3"; ALU
Harmonization Code
7616995190
MSDS Flag
No
Material - Mounting Hardware
Locknut or Tapped Opening
Material
Aluminum, Cast
Base Unit of Measure
EA
Carton - Gross Weight per Pack
8.95 lb.
Carton - Pack Description
Carton
Carton - Total Units
5 EA
Lowest Level UOM
Each
Width3.900 in
Industry Standard(s)UL Listed
ApplicationStraight Male- Form 7
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Number of ConductorsSingle
StandardUL Listed
TypeStraight Male
General Literature Asset 1 Display TextTray Cable Cord Connectors FAQ
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Nema RatingNEMA Type 4, 4X, 12 and 13
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A490
Cord Diameter2.06-2.19 in
SeriesStandard Duty Series
BOX SIZE5.200x11.900x9.100 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585200897
Each - Pack DescriptionEach

Certifications

EU RoHS Indicator
Yes
