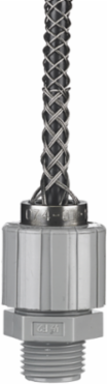

Hubbell Wiring Device-Kellems 074011342 Deluxe Cord Grip, 1" NPT, 0.750-0.875 Inch Cable Size, Nylon Fittings
- MPN: 074011342
- UPC: 783585331133
- PPN: HBL-074011342
- UNSPSC: 39121431
CAD
$304.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Deluxe Cord Grips, Straight Male, Non-Metallic, .750-.875", 1" with Mesh
Features
- Aluminum Fitting
- Stainless steel mesh is corrosion resistant
- Neoprene bushing is oil and watertight
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Dimensions
- 1.88 in x 1.88 in x 2.45 in
- Industry Standard(s)
- UL Listed
- Performance
- Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2(Fitting);Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C;Environmental - Operating Temperatures - –40°F to +225°F (–40°C to +107°C);Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting
- Conductor Range
- .750"-.875" (1.90-2.22)
- Number of Conductors
- Single
- Special Features
- Standard Product
- Temperature Rating
- Minimum -40 Deg F to 225 Deg F (-40 Deg C to 107 Deg C)
- Weight
- 0.2 lb.
- General Literature Asset 1 Display Text
- Tray Cable Cord Connectors FAQ
- General Literature Asset 3 Display Text
- Pulp & Paper Solutions
- Display Size
- 1" NPT
- Style
- For Insulated Cables
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A52A480
- Material - Mounting Hardware
- Locknut or Tapped Opening
- Series
- Deluxe Cord Grips Series
- BOX SIZE
- 3.250x18.250x6.250 (in)
- Carton - Number of Sub Packs
- 2
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585331133
- Each - Pack Description
- Each
- NAICS Code
- 3359323114
Cable Diameter Range0.750 in-0.875 in
Height2.45 in
Length1.88 in
ApplicationStraight Male- Form 4
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
Size1.88 in x 1.88 in x 2.45 in
StandardUL Listed
TypeStraight Male Thread
Width1.88 in
General Literature Asset 2 Display TextWatertight Wiring Devices
Cable Size.750"-.875" (1.90-2.22)
Number Of ConductorsSingle
Thread Size1" NPT
Description - InvoiceSTR NM, DCG, .75-.87"; 1"W/MESH
Harmonization Code3926909989
MSDS FlagNo
Cord Range.750"-.875" (1.90-2.22)
MaterialNylon Fittings, Stainless Steel Mesh
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.550 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
