Pass & Seymour

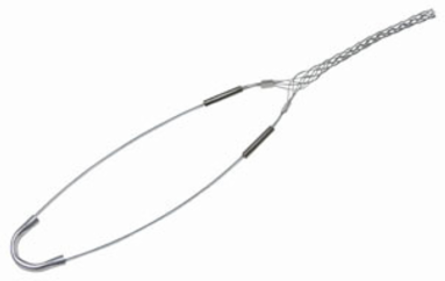

Pass & Seymour FC40 Flexcor® Single Eye Support Grip, 0.41-0.56 Inch Cable Diameter, 9 Inch Bale Length

Flexcor® Single Eye Support Grip, 0.41-0.56 Inch Cable Diameter, 9 Inch Bale Length
  • MPN: FC40
  • UPC: 785007998726
  • PPN: P-S-FC40

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$21.62/ EA

Description

FC40: Bus Drop, Closed Mesh, Single Eye, Cable Diameter 0.41 - 0.56 inches, Bale Length 9-in, Mesh Length 5-in, Break Strength 1100 lbs.

Features

  • Bus drop grips are used as cable support. They relieve any direct tension from the critical connection and absorb vibration and flexing.
  • Bus drop grips are woven of galvanized steel wire.
  • They are offered with either the single eye or locking bale attachment.
  • Support grips are woven of corrosion-resistant tinned-stainless steel wire.
  • Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
  • Bale Length: 9: Mesh Length: 5.0

Specifications

Specifications

Length
5.0 in
Product Line
Pass & Seymour
Eye Style
Single
Mesh Length
5.0 in
Special Features
Bus drop grips are used as cable support. They relieve any direct tension from the critical connection and absorb vibration and flexing. Bus drop grips are woven of galvanized steel wire. They are offered with either the single eye or locking bale attachment.
Minimum Cable Range
0.56 in
Cable Diameter Range
0.410-0.560 in
Capacity
Various Cable Diameter Ranges
Mounting
Consult the Factory for Mounting Recommendations
Width0.56 in
Country of OriginMexico
TypeSupport Grip
Indoor/OutdoorBoth
Maximum Cable Range0.41 in
Application SectorIndustrial
Approximate Break Strength1100.0 lb
StandardUL/CSA Approval (consult factory)
ConstructionSupport and Strain Relief Grips, Various Types of Pulling
