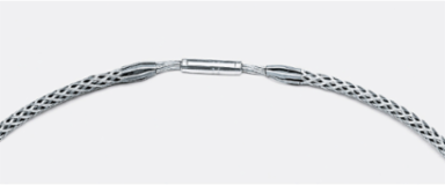

Hubbell Wiring Device-Kellems 03317002 Rotating Wire Rope Splicing Grip, 0.56-0.63 Inch, 7,500 lb Breaking Strength
- MPN: 03317002
- UPC: 783585317229
- PPN: HBL-03317002
- UNSPSC: 39121449
CAD
$1403.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Kellems Wire Management, Splicing Grips, Rotating Wire Rope Splicing, .56-.63"
Features
- Galvanized steel meshs contructed in triple, double and single weave
- Rotating barrel helps eliminate twist in old rope being transferred to new rope
- Shoulders: Aluminum, Bushing: Steel, Lug: Steel, Tube: Steel, Swivel: Steel, Tag: Mylar
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Cable Diameter Range | 0.56 in-0.63 in |
| Industry Standard(s) | CSA Certified |
| Application | Wire Rope Splicing |
| Environmental Conditions | No Limitations |
| Special Features | Shoulders: Aluminum, Bushing: Steel, Lug: Steel, Tube: Steel, Swivel: Steel, Tag: Mylar |
| Type | Rotating Wire Rope |
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
| General Literature Asset 3 Display Text | FOOD & BEVERAGE SOLUTIONS |
| Display Size | Standard Sized Product |
| Style | Closed Mesh, Triple, Double, Single Weave |
| Description - Invoice | ROT WIRE ROPE SPLICE, .56-.63" |
| Harmonization Code | 7326200090 |
| MSDS Flag | No |
| Material - Mounting Hardware | On Cable Ends |
| Series | Wire Rope Grips Series |
| BOX SIZE | 13.400x24.300x16.500 (in) |
| Carton - Number of Sub Packs | 6 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585317229 |
| Case Weight | 14.600 lb. |
| Lowest Level UOM | Each |
| Approx Breaking Strength | 7,500 lb. |
|---|---|
| Width | 1.500 in |
| Performance | Mechanical - Approximate Breaking Strength - 7,500 (33,360);Mechanical - Approximate Strength of Grip per Foot - 5.83 (1.78);Mechanical - Barrel Dimensions - 4.25" (10.79) x 1.00" (2.54);Mechanical - Working Load - (program formula 5% of Approximate Breaking Strength) |
| Color | Metallic |
| Number of Conductors | 1 |
| Standard | CSA Certified |
| Weight | 2.15 lb. |
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
| Cable Size | 0.56"-0.63" (1.43-1.59) |
| Number Of Conductors | 1 |
| Class Code | A52 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A52A480 |
| Material | Steel, Galvanized |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 14.600 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 6 |
| Each - Pack Description | Each |
| NAICS Code | 3359323114 |
