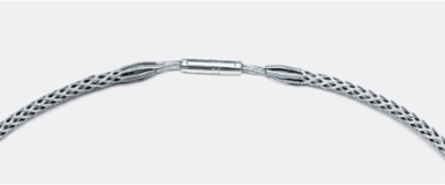

Hubbell Wiring Device-Kellems 03317005 Rotating Wire Rope Splicing Grip 1.25-1.38 Inch, 20,000 lb Strength
- MPN: 03317005
- UPC: 783585317250
- PPN: HBL-03317005
- UNSPSC: 39121449
CAD
$2133.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Splicing Grips, Rotating Wire Rope Splicing, 1.25-1.38"
Features
- Galvanized steel meshs contructed in triple, double and single weave
- Rotating barrel helps eliminate twist in old rope being transferred to new rope
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Cable Diameter Range
- 1.25 in-1.38 in
- Industry Standard(s)
- CSA Certified
- Application
- Wire Rope Splicing
- Environmental Conditions
- No Limitations
- Special Features
- Standard Product
- Type
- Rotating Wire Rope
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Cable Size
- 1.25"-1.38" (3.17-3.49)
- Number Of Conductors
- 1
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A52A480
- Material
- Steel, Galvanized
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585317250
- Lowest Level UOM
- Each
Approx Breaking Strength20,000 lb.
Width2.500 in
PerformanceMechanical - Approximate Breaking Strength - 20,000 (88,960);Mechanical - Approximate Strength of Grip per Foot - 9.00 (2.74);Mechanical - Barrel Dimensions - 5.50" (13.97) x 1.37" (3.48);Mechanical - Working Load - (program formula 5% of Approximate Breaking Strength)
ColorMetallic
Number of Conductors1
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Display SizeStandard Sized Product
StyleClosed Mesh, Triple, Double, Single Weave
Description - InvoiceROT WIRE ROPE SPLICE, 1.25-1.37"
Harmonization Code7326200090
MSDS FlagNo
Material - Mounting HardwareOn Cable Ends
SeriesWire Rope Grips Series
BOX SIZE(in)
Each - Pack DescriptionEach
NAICS Code332999H303
