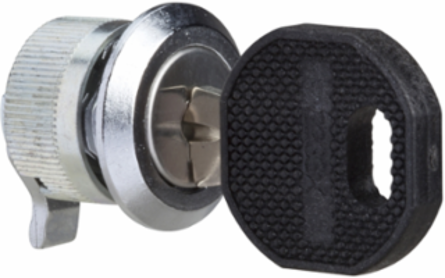

Schneider Electric NSYML23 Spacial SF Cylinder Keylock for Partial Door, Key Number 2233X
Schneider Electric NSYML23 Spacial SF Cylinder Keylock for Partial Door, Key Number 2233X
- MPN: NSYML23
- PPN: SCH-NSYML23
- UNSPSC: 39121302
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$37.71/ EA
Description
Designed for use with Schneider Electric's PanelSeT SF enclosures, this keylock provides a reliable locking solution for compartmentalized and PC applications. The cylinder lock features a key number of 2233X and is specifically crafted for mounting on partial doors, ensuring secure access control. Made in Germany, this durable accessory includes one insert and comes with an 18-month warranty, reflecting its quality and reliability in protecting your valuable equipment. With a carbon footprint of just 0.241746744 kg CO2 equivalent over its total life cycle, it also demonstrates a commitment to environmental responsibility.
Features
- Transformation of lock with shaped inserts, triangular 6.5 mm and square 6 mm.
- Lock with 2233X key for partial doors.
- Lock with 2233X key, exclusive for hinged keyboard door.
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Application
- compartmentalised application, PC application
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.1 kg CO2 eq., 0.079928819
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0.1 kg CO2 eq., 0.147734028
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Composition
- 1 insert
- Key Number
- 2233X
- Mounting Support
- partial door
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Total Lifecycle Carbon Footprint
- 0.2 kg CO2 eq.
- Medium Desc
- Spacial SF 2233X keylock - for partial door
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; FR
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A40.006544942, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.007538956, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2026-02-24
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Energy Efficiency OptimizedFalse
Lock Typekey lock
Package Weight Lbs34.000 g
Product Or Component Typelock
RangePanelSeT
Sustainable PackagingNo
Accessory Separate Part Category2locking accessory
Stocking FlagY
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Unitunit
Type Of KeylockCylinder
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 0.241746744
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- SF enclosures
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
General Attributes
- Product Or Component Type
- lock
