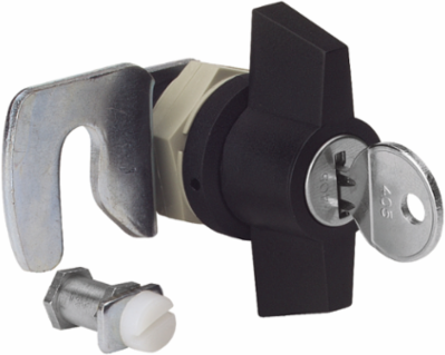

Schneider Electric NSYTL1242EME Cylinder Key Lock with Barrel and 2 Keys for PanelSeT PLM
Schneider Electric NSYTL1242EME Cylinder Key Lock with Barrel and 2 Keys for PanelSeT PLM
- MPN: NSYTL1242EME
- PPN: SCH-NSYTL1242EME
- UNSPSC: 39121324
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$49.88/ EA
Description

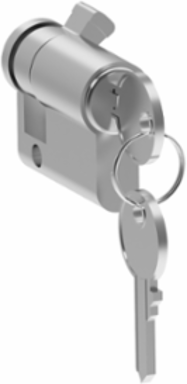

Barrel and key 1242E for retractable handle of 3 point lock Thalassa PLM or PLD. . Multi-purpose locking accessory, direct mounting on door. NSYPLM V version compatible. Cylinder keylock. Key number is 1242E. 1 handle with key lock, 1 cylindrical barrel and 2 keys incl.
Features
- The enclosures PanelSet SMX and SFX are delivered as standard with a retractable handle made from
- Painted zamak with 5-mm double-bar insert, ref.
- Standard inserts can be replaced by shaped inserts or barrels according the following table:
Specifications
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 0.654138248
- Packaging Made With Recycled Cardboard
- No
- Product Compatibility
- NSYPLM...V version
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 cylindrical barrel, 2 key, 1 handle with key lock
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.2 kg CO2 eq., 0.21627798
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0.4 kg CO2 eq., 0.399750899
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Device Application
- multi-purpose
- Key Number
- 1242E
- Mounting Support
- direct mounting on door
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Total Lifecycle Carbon Footprint
- 0.7 kg CO2 eq.
- Medium Desc
- barrel and key 1242E for retractable handle of 3 point lock PLM or PLD
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; FR
- Global Commercial Status
- Commercialised
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A40.017709842, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.020399527, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2026-02-24
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Energy Efficiency OptimizedFalse
Lock Typekey lock
Package Weight Lbs92.000 g
Product Or Component Typehandle
RangePanelSeT
Sustainable PackagingNo
Accessory Separate Part Category2locking accessory
Stocking FlagY
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Unitunit
Type Of KeylockCylinder
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
General Attributes
- Product Or Component Type
- handle
