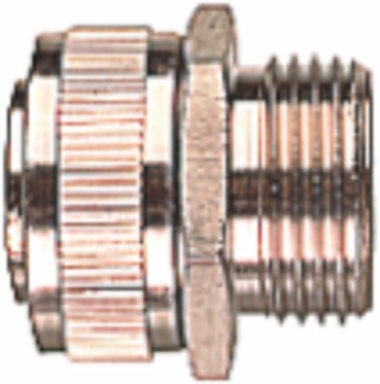

Kopex-ex GFM0404 Metallic Fitting for Uncovered Conduit
- MPN: GFM0404
- UPC: 786210277127
- PPN: T-B-GFM0404
CAD
$53.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Fitting for Uncovered Conduit, Straight with External Male Thread, Conduit Size 20mm, M20 Thread, Very High Mechanical and UV Protection, IP40 Rating, Nickel Plated Brass
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Kopex
- Special Features
- Very High Mechanical and UV Protection
- Standard
- BSI Kitemark KM-90009, Low Voltage Directive
- Material
- Brass
- Finish
- Nickel Plated
- Connection
- Straight, M20 Thread
IGCC4441 Electrical fittings
TypeMetallic Fitting for Uncovered Conduit
ApplicationFor Insertion Into Threaded Entries and Knockouts Using a Locknut to Secure
SizeConduit Size 20mm
Insulation ClassIP40
ColorMetallic
Temperature RatingStatic: -50 to 350 Degrees C; Dynamic: -45 to 250 Degrees C
Packaging
- Inner Quantity
- 25
- Outer Dimensions (inches)
- 13x13x7
Outer Quantity225
Weight Uom0.06 lbs. Each
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Nominal size in inch
- 1/2 inch
- Model
- Straight
- Construction type
- External thread
- Thread connection size
- M20 x 1.5
- Material housing
- Brass
- Thread length
- 10mm
- Total height
- 24mm
- Approved in combination with protective conduit CSA
- N
- Approved in combination with protective conduit FI
- N
Nominal diameter20mm
Degree of protection (IP) conduit dependantIP40-IP40
Revolving threadN
Thread typeMetric
One-pieceY
Surface protectionNickel-plated
Total length24.5mm
Approved in combination with protective conduit DIN EN 61386-23Y
Approved in combination with protective conduit ULN
Operating temperature-50-+350°C
