Kopex-ex

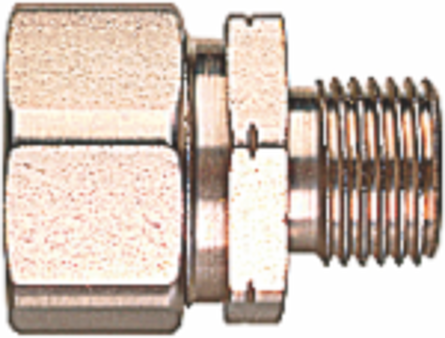

Kopex-ex XQMS0303 Straight Fitting with External Thread for Covered Conduit

Straight Fitting with External Thread for Covered Conduit
  • MPN: XQMS0303
  • UPC: 786210253862
  • PPN: T-B-XQMS0303

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$322.20/ EA

Description

Liquid Tight Fitting for Covered Conduit, Straight with External Male Thread, Conduit Size 16mm, M16 Thread, Very High Mechanical and UV Protection, IP66, IP67 Ratings, Stainless Steel AISI 316L, Nylon Seals

Specifications

European Specifications (ETIM)

ETIM
EC001180 Screw connection for protective metallic hose
Nominal size in inch
3/8 inch
Model
Straight
Construction type
External thread
Thread connection size
M16 x 1.5
Material housing
Stainless steel
Thread length
12mm
Total height
25.4mm
Approved in combination with protective conduit CSA
N
Approved in combination with protective conduit FI
N
Nominal diameter16mm
Degree of protection (IP) conduit dependantIP66-IP67
Revolving threadN
Thread typeMetric
One-pieceY
Surface protectionUntreated
Total length32.5mm
Approved in combination with protective conduit DIN EN 61386-23N
Approved in combination with protective conduit ULY
Operating temperature-65-+150°C

North American Specifications (UNSPSC)

UNSPSC
39121420 Liquid tight connectors
Brand Name
Kopex
Special Features
Very High UV Protection and Mechanical Protection
Standard
UL E60625, BSI Kitemark KM-90009, Low Voltage Directive
Connection
M16 Thread
Color
Metallic
Temperature Rating
Static: -50 to 350 Degrees C, Dynamic: -45 to 250 Degrees C
IGCC4585 Liquid tight connectors
TypeStraight Fitting with External Thread for Covered Conduit
ApplicationFor Insertion Into Threaded Entries & Knockouts Using a Locknut to Secure
SizeConduit Size 16mm
MaterialStainless Steel with Nylon Seals
InsulationIP66, 67 Rating

Packaging

Outer Quantity
1
Weight Uom
0.1 lbs. Each
Outer Dimensions (inches)1x1x1
