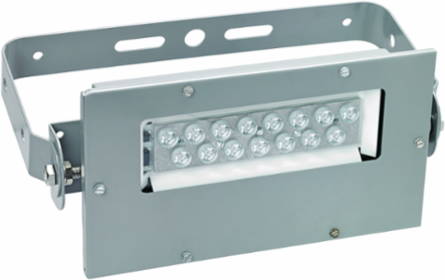

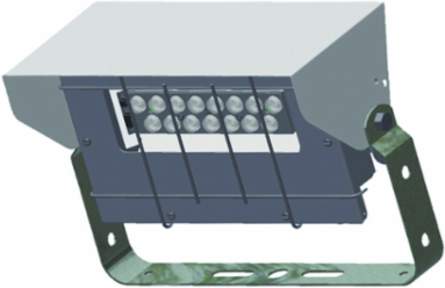

Killark KFLC4530 LED Floodlight, 45 Watt, 4718 Lumens, Hazardous Rated, -40°C to 55°C
Killark KFLC4530 LED Floodlight, 45 Watt, 4718 Lumens, Hazardous Rated, -40°C to 55°C
- MPN: KFLC4530
- UPC: 783936112008
- PPN: HBL-KFLC4530
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2394.14/ EA
Description
The KFLC Series compact LED floodlights are designed with a copper-free aluminum housing and painted with a powder epoxy finish for superior corrosion resistance in harsh and hazardous environments. Killark LED floodlights provide a crisp white light that is great for color rendering. The KFLC Series floodlight are suitable for wet locations and high ambient areas.
Features
- Standard supplemental 6KV surge protection
- Optional supplementary surge protection available 20KA/10KV (120-277 VAC), 10KA/10KV (347-480 VAC)
- One 3/4” NPT hub & R-21 3/4” x 1/2” reducer is standard
- Crisp White Light for Excellent Color Rendering – Chromaticity 5000 K (CCT) approx. 70 CRI
- Energy Savings – High lumens per watt
- Long Life – 100,000+ maintenance free hours to 70% initial lumens
- Ambient suitability -40?C to 55?C
- Solderless LED Board Connections – Vibration Resistant
- Instant On – Including after power interruption
- LM80-08 Measurement of lumen maintenance for LED light sources
- LM79-08 Certified “Absolute” Photometry, including Chromaticity Color for Solid State Lighting
- L70 Values - Industry Nomenclature for Hours of use to 70% of Initial Lumens (TM-21+ Cal.)
- The KFLC Series compact LED floodlights are designed with a copper-free aluminum housing and painted with a powder epoxy finish for superior corrosion resistance in harsh and hazardous environments. Killark LED floodlights provide a crisp white light that is great for color rendering. The KFLC Series floodlight are suitable for wet locations and high ambient areas.
Specifications
Specifications
- ARRA Compliant
- Contact Manufacturer
- Hazardous Rating(s)
- Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Operating Temperature Celcius Max
- 55
- Operating Temperature Range Celcius
- -40°C to 55°C
- Voltage Rating
- 120-277 VAC
- Engineering Drawing 1 Display Text
- KFLC Series 2D - Engineering Drawing
- Finish Type
- Powder Epoxy Paint
- Mounting Type
- Trunnion
- Class Code
- D20
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- Sub Class Code
- D20D202
- Lumens Per Watt
- 453.7
- Series
- KFLC Seires
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936112008
Country of OriginUnited States
Lumens4718
Operating Temperature Celcius Min-40 °C
Optic TypeGlass Lens
Weight9.5 lb.
ApplicationLED Compact Floods are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or NEMA 3 and 4X areas where wind, water, snow or high ambients can be expected. They can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as defined by the NEC.
Frequency Rating50/60 Hz
Wattage45 W
Description - Invoice45W 120-277VAC 50/60HZ LED Compact FLOOD
Harmonization Code9405429100
MSDS FlagNo
Lumen Range15,001-25,000 lm
Light SourceLED
Base Unit of MeasureEA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
