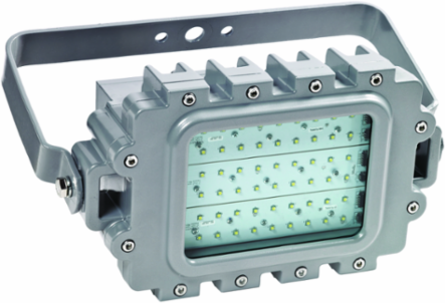

Killark KF1L10530 105W Explosion Proof LED Floodlight, 8362 Lumens, IP66 Rating, 120-277 VAC
- MPN: KF1L10530
- UPC: 783936099989
- PPN: HBL-KF1L10530
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
105W LED Flood - 120-277VAC 50/60Hz
Features
- Standard supplemental 6KV surge protection
- Optional supplementary surge protection available 20KA/10KV (120-277 VAC), 10KA/10KV (347-480 VAC)
- Factory Sealed Construction
- Crisp White Light for Excellent Color Rendering – Chromaticity 5000 K (CCT) approx. 70 CRI
- Energy Savings – High lumens per watt
- Long Life – 100,000+ maintenance free hours to 70% initial lumens
- Instant On - Including after power interruption
- One 3/4” NPT & one M20 entry standard
- World Voltage 120 - 277VAC 50/60Hz
- Solderless LED Board Connections – Vibration Resistant
- LM80-08 Measurement of lumen maintenance for LED light sources
- LM79-08 Certified “Absolute” Photometry, including Chromaticity Color for Solid State Lighting
- L70 Values - Industry Nomenclature for Hours of use to 70% of Initial Lumens (TM-21+ Cal.)
- The KF1L Series LED floodlights are high quality explosion proof light fixtures. Designed to go into the harshest environments where explosive vapors are present . Killark LED floodlights provide a crisp white light that is great for color rendering.
Specifications
Key Specifications
- ARRA Compliant
- Contact Manufacturer
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Lumens
- 8362
- Operating Temperature Celcius Min
- -40 °C
- Optic Type
- Glass Lens
- Weight
- 46 lb.
- Application
- LED KF1L Series Explosion-proof Floods are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or NEMA 3 and 4X areas where wind, water, snow or high ambients can be expected. They can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as defined by the NEC.
- Frequency Rating
- 50/60 Hz
- Wattage
- 105 W
- Description - Invoice
- 105W C1D1Z1 LED FLOOD 120-277VAC 50/60HZ
- Harmonization Code
- 9405429100
- MSDS Flag
- No
- Lumen Range
- 10,001-15,000 lm
- Light Source
- LED
- Series
- KF1L Series
- BOX SIZE
- 0.000x0.000x0.000 (in)
- Carton - Total Units
- 5 EA
Country of OriginUnited Kingdom
IP RatingIP66
Operating Temperature Celcius Max55
Operating Temperature Range Celcius-40°C to 55°C
Voltage Rating120-277 VAC
Engineering Drawing 1 Display TextKF1L Series - 2D Engineering Drawing
Finish TypePowder Epoxy Paint
Mounting TypeTrunnion
Class CodeD20
Freight Class Code06316009
Image Actual Or RepresentativeA
Sub Class CodeD20D201
Lumens Per Watt132.6
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936099989
NAICS Code3351291100
Certifications
- EU RoHS Indicator
- Contact Manufacturer
