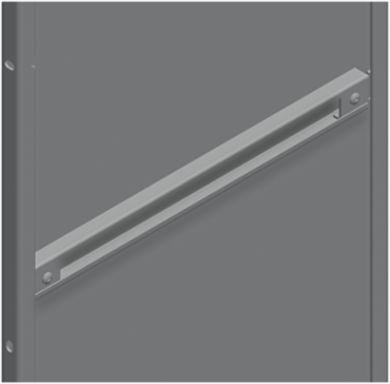

Schneider Electric NSYMPRK16 Reinforcement Kit for PanelSeT, 1600 mm Width, 20 mm Depth, 40 mm Height
Schneider Electric NSYMPRK16 Reinforcement Kit for PanelSeT, 1600 mm Width, 20 mm Depth, 40 mm Height
- MPN: NSYMPRK16
- PPN: SCH-NSYMPRK16
- UNSPSC: 39121327
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$307.98/ EA
Description
Enhance the stability and durability of your mounting solutions with this reinforcement kit designed for the PanelSeT SFN, SF, and SM series. Crafted from robust steel with a zinc-coated finish, this kit includes two profiles that measure a nominal width of 1600 mm, providing the necessary support for various applications. With a depth of 20 mm and a height of 40 mm, this multi-purpose accessory is easy to install using screws at the rear of the mounting plate. Designed in Spain, this reinforcement kit not only meets high-quality standards but also comes with an 18-month warranty, ensuring reliability for your projects.
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 2 profile, 4 support, fixing elements
- Carbon Footprint Of The Distribution Phase A4
- 0.623116949, 0.6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.717752936, 0.7 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-12-11
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option Id
- STANDARD
- Enclosure Nominal Dimensions
- -
- Fixing Mode
- by screws
- Package Weight Lbs
- 3.237 kg
- Product Or Component Type
- reinforcement kit
- Returnability
- Yes
- Total Lifecycle Carbon Footprint
- 23 kg CO2 eq.
- Pep Verification Date
- 2023-03-30
- PSR Version
- PSR-0005-ed2-2016 03 29
- Functional Unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Product Kit Identifier
- N
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Range CompatibilityPanelSeT SF, PanelSeT SM
Carbon Footprint Of The End Of Life Phase C1 To C48 kg CO2 eq., 7.609693694
Carbon Footprint Of The Manufacturing Phase A1 To A314 kg CO2 eq., 14.06514847
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
WD Status1 - GSC certified
Function OptionStandard
Energy Efficiency OptimizedFalse
Materialsteel
Product AvailabilityStock - Normally stocked in distribution facility
RangePanelSeT
Sustainable PackagingNo
Pep CodeENVPEP1109023EN
PCR VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit Unitunit
Product ManagerJULES BARBALONGA
Environment Attributes Main
- EU ROHS Directive
- Compliant?, Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 23.01571205
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP1109023EN
- PCR Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
ROHS Exemption InformationYes
Reach Free SHVCYes
China ROHS RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
PSR VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- reinforcement kit
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 1.57 in
- Depth
- 0.79 in
Width62.99 in
