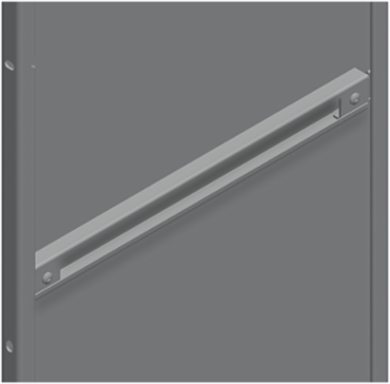

Schneider Electric NSYMPRK12 Reinforcement Kit, 1200 mm Width, Steel, Set of 2 Profiles
Schneider Electric NSYMPRK12 Reinforcement Kit, 1200 mm Width, Steel, Set of 2 Profiles
- MPN: NSYMPRK12
- PPN: SCH-NSYMPRK12
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$254.97/ EA
Description
Designed for versatility and durability, this reinforcement kit is an essential accessory for mounting plates in Schneider Electric's PanelSeT SF and SM ranges. Crafted from high-quality steel with a zinc-coated finish, the kit includes two profiles, each measuring a nominal width of 1200 mm, ensuring robust support and stability for your installations. With a thickness of 1.5 mm and a height of 40 mm, it is engineered to withstand various applications, while its screw-fixing mode allows for secure attachment to the rear of the mounting plate. This product not only reflects Schneider Electric's commitment to quality but also aligns with environmentally conscious practices, boasting a manageable carbon footprint throughout its lifecycle.
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 2 profile, 4 support, fixing elements
- Carbon Footprint Of The Distribution Phase A4
- 0.481245713, 0.5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.554334983, 0.6 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-12-11
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Material
- steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Surface Finish
- zinc coated
- Thickness
- 1.5 mm
- Accessory Separate Part Category
- mounting accessory
- Pep Code
- ENVPEP1109023EN
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Quantity
- 1
- Product Weight In G2
- 2500
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; FR
- Offer Owner Code
- 190789
- Width Nominal
- nominal: 1200 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Carbon Footprint Of The End Of Life Phase C1 To C46 kg CO2 eq., 5.87711901
Carbon Footprint Of The Manufacturing Phase A1 To A311 kg CO2 eq., 10.86279616
Local Data StatusPublishable
Global Commercial StatusCommercialised
Stocking FlagY
Legacy Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Fixing Modeby screws
Mounting Locationrear of mounting plate
Product Or Component Typereinforcement kit
RangePanelSeT
Software Versionv5.9.4
Sustainable PackagingNo
Total Lifecycle Carbon Footprint18 kg CO2 eq.
Warranty In Months18
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Functional Unit Unitunit
Reference Lifetime In Y220
Recyclability Potential In 298
Height Nominal40 mm
Width Realnominal: 1200 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 17.77549587
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-03-30
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNej
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Pep CodeENVPEP1109023EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- reinforcement kit
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Width
- 47.24 in
Depth20 mm
