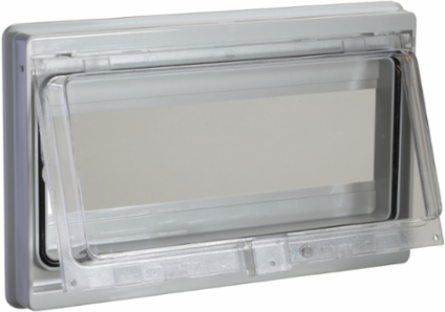

Schneider Electric NSYMW10MK Modular Front Panel with Sealed Window, 46 x 180 mm for 10 Modules
Schneider Electric NSYMW10MK Modular Front Panel with Sealed Window, 46 x 180 mm for 10 Modules
- MPN: NSYMW10MK
- PPN: SCH-NSYMW10MK
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$48.23/ EA
Description
Designed for versatility and functionality, this modular front panel with a sealed window is an essential component for any electrical installation. With dimensions of 46 x 180 mm, it accommodates up to 10 modules, making it suitable for a variety of applications. Constructed from durable polycarbonate and PVC, this panel ensures longevity and resilience in demanding environments. It can be easily mounted on doors or panels, providing a practical solution for switchgear installations. Additionally, its clipped lock type offers secure closure, enhancing the safety of the equipment housed within. This product is compatible with Schneider Electric's PanelSeT range, making it a reliable choice for those looking to optimize their electrical setups.
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- - H: 850 mm, - H: 850 mm, - H: 850 mm, - H: 850 mm
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1927
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Energy Efficiency Optimized
- False
- Mounting Location
- installation on door or panel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Sustainable Packaging
- No
- Accessory Separate Part Category
- installation accessory
- Warranty In Months
- 18
- Pn
- 1
- Height Useful
- internal: 46 mm
- Width Real
- internal: 180 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Materialpolycarbonate, PVC (polyvinyl chloride)
Local Publishable Date2026-04-13
Stocking FlagY
Weee ScopeOut
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Composition1 modular front panel
Lock Typeclipped
Mounting Supportkit for fixing the switchgear
Product Or Component Typewindow
ReturnabilityNo
Total Number Of 18 Mm Modules10
Accessory Separate Part Destinationfor modular device
Offer Owner Code190789
Height Nominalinternal: 46 mm
Width Nominalinternal: 180 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- window
ETIM
- ETIM 8
- EC000456
ETIM 9EC000456
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Germany
- Width
- 7.09 in
Height1.81 in
