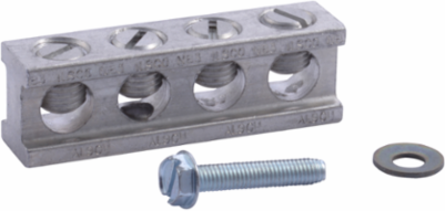

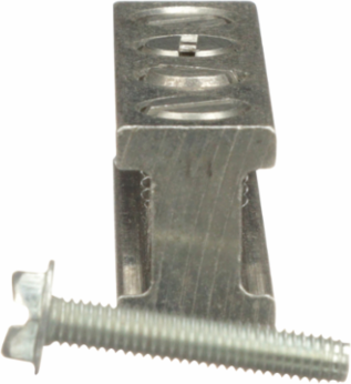

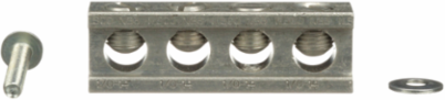

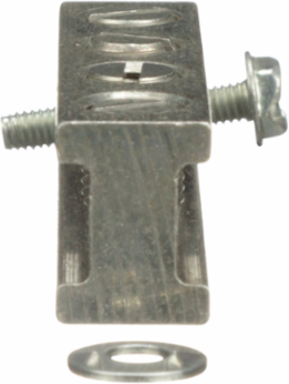

Square D DT100SG Heavy Duty Safety Switch Grounding Kit, 200A, AWG 14-1/0 Copper/Aluminum
- MPN: DT100SG
- UPC: 785901483090
- PPN: SCH-DT100SG
CAD
$55.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 100A and is UL listed with a NEMA 3R rating of protection. This Heavy Duty Safety Switch Equipment Ground Assy for 240V and 600V, 800A. This product comes with an 18 month warranty. This heavy duty safety switch grounding bar, by Square D, has a rated current of 200A, and is rated for an AWG gauge of AWG 14/AWG 1 x 0, copper or aluminium.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Complementary Attributes
- Line Rated Current
- 200 A 82000
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1920
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Awg Gauge
- 14 AWG...1/0 AWG copper or aluminium
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Square D
- Series Name
- heavy duty
- Tightening Torque
- 35-35 lbf.in (14 AWG...10 AWG)40-40 lbf.in (8 AWG)45-45 lbf.in (6 AWG...4 AWG)50-50 lbf.in (3 AWG...0 AWG)
- Package Weight(Lbs)
- 36.287 g
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2025-11-13
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category4
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Product Or Component Typesafety switch grounding bar
ReturnabilityYes
Sustainable PackagingNo
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536904000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- safety switch grounding bar
Range Of ProductSquare D
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
