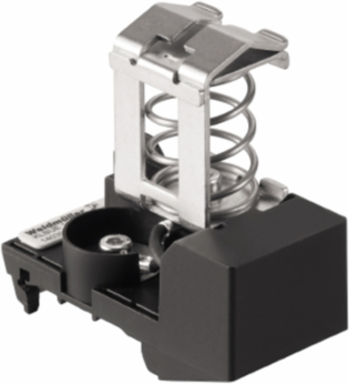

Weidmuller 1403080000 KLBUE 10-20 RC TS35
- MPN: 1403080000
- PPN: WDM-1403080000
CAD
$144.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Clamping yoke, Clamping yoke, PA 66 GF 30
Documentation & Downloads
Specifications
Approvals
- Approvals
- EAC, GERMLLOYD
ROHSConform
Dimensions And Weights
- Width
- 39.6 mm
- Height
- 67.5 mm
- Depth
- 63.6 mm
- Net weight
- 99 g
Width (inches)1.559 inch
Height (inches)2.657 inch
Depth (inches)2.504 inch
Additional Technical Data
- Explosion-tested version
- No
Installation adviceDirect mounting
Material Data
- Material
- PA 66 GF 30
- UL 94 flammability rating
- V-0
Colourblack, Silver grey
Classifications
- ETIM 6.0
- EC002020
- eClass 9.0
- 27-14-11-50
- eClass 10.0
- 27-14-11-50
ETIM 7.0EC002020
eClass 9.127-14-11-50
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
System Specifications
- Version
- For a shield connection, With resistor
RailTS 35
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 105 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-25 °C
Rating Data
- Rated voltage
- 230 V AC
Conductors For Clamping (Rated Connection)
- Cable diameter, max.
- 20 mm
- Stripping length
- 30 mm
Cable diameter, min.10 mm
