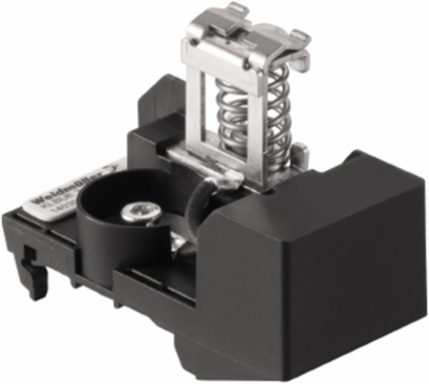

Weidmuller 1403070000 KLBUE 3-8 RC TS27
- MPN: 1403070000
- PPN: WDM-1403070000
CAD
$148.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Clamping yoke, Clamping yoke, PA 66 GF 30
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC, GERMLLOYD |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 35 mm |
|---|---|
| Height | 67.5 mm |
| Depth | 50 mm |
| Net weight | 61.19 g |
| Width (inches) | 1.378 inch |
|---|---|
| Height (inches) | 2.657 inch |
| Depth (inches) | 1.969 inch |
Additional Technical Data
| Explosion-tested version | No |
|---|
| Installation advice | Direct mounting |
|---|
Material Data
| Material | PA 66 GF 30 |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | black, Silver grey |
|---|
Classifications
| ETIM 6.0 | EC002020 |
|---|---|
| eClass 9.0 | 27-14-11-50 |
| eClass 10.0 | 27-14-11-50 |
| ETIM 7.0 | EC002020 |
|---|---|
| eClass 9.1 | 27-14-11-50 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
System Specifications
| Version | For a shield connection, With resistor |
|---|
| Rail | TS 27 |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 105 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -25 °C |
Rating Data
| Rated voltage | 230 V AC |
|---|
Conductors For Clamping (Rated Connection)
| Cable diameter, max. | 8 mm |
|---|---|
| Stripping length | 22 mm |
| Cable diameter, min. | 3 mm |
|---|
