Weidmuller 1167850000 KLBUE 4-13.5 CPF16
- MPN: 1167850000
- PPN: WDM-1167850000
CAD
$19.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

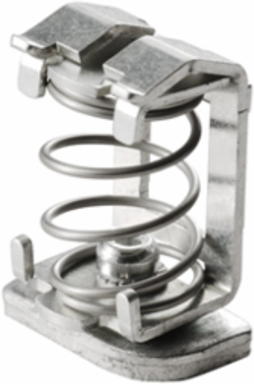

Clamping yoke, Clamping yoke for shield connection, Steel
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 20.1 mm |
|---|---|
| Height | 22 mm |
| Depth | 31.45 mm |
| Mounting dimension - width | 18.9 mm |
| Width (inches) | 0.791 inch |
|---|---|
| Height (inches) | 0.866 inch |
| Depth (inches) | 1.238 inch |
| Net weight | 30.1 g |
Additional Technical Data
| Explosion-tested version | No |
|---|
| Installation advice | C-rail with 16-mm opening |
|---|
Material Data
| Material | Steel |
|---|
| Colour | grey |
|---|
Classifications
| ETIM 6.0 | EC002020 |
|---|---|
| eClass 9.0 | 27-14-11-50 |
| eClass 10.0 | 27-14-11-50 |
| ETIM 7.0 | EC002020 |
|---|---|
| eClass 9.1 | 27-14-11-50 |
System Specifications
| Rail | TS 27 |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Storage temperature, min. | 10 °C |
|---|
Conductors For Clamping (Rated Connection)
| Cable diameter, max. | 13.5 mm |
|---|
| Cable diameter, min. | 4 mm |
|---|
