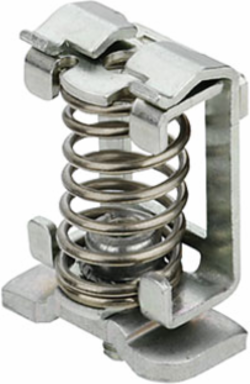

Weidmuller 1752681001 KLBUE 3-8 CPF
- MPN: 1752681001
- PPN: WDM-1752681001
CAD
$18.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Clamping yoke, Clamping yoke, Steel
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 14.5 mm |
|---|---|
| Height | 18 mm |
| Depth | 26 mm |
| Mounting dimension - width | 13.5 mm |
| Width (inches) | 0.571 inch |
|---|---|
| Height (inches) | 0.709 inch |
| Depth (inches) | 1.024 inch |
| Net weight | 16.3 g |
Dimensions
| Pitch in mm (P) | 14 mm |
|---|
Additional Technical Data
| Explosion-tested version | Yes |
|---|---|
| Type of fixing | when screwed in |
| Installation advice | Direct mounting, Busbar |
|---|
Material Data
| Material | Steel |
|---|
| Colour | grey |
|---|
Classifications
| ETIM 6.0 | EC002020 |
|---|---|
| eClass 9.0 | 27-14-11-50 |
| eClass 10.0 | 27-14-11-50 |
| ETIM 7.0 | EC002020 |
|---|---|
| eClass 9.1 | 27-14-11-50 |
| UNSPSC | 30-21-18-01 |
System Specifications
| Version | For a shield connection |
|---|
| Rail | TS 27 |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Storage temperature, min. | 10 °C |
|---|
Conductors For Clamping (Rated Connection)
| Cable diameter, max. | 8 mm |
|---|
| Cable diameter, min. | 3 mm |
|---|
