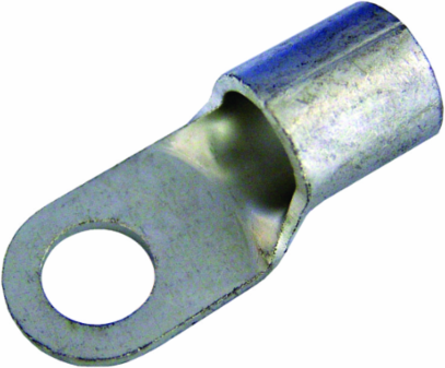

Weidmuller 1493690000 KQN-M4/-0,5
- MPN: 1493690000
- PPN: WDM-1493690000
CAD
$0.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
cable lug, terminal end,0.1 mm² - 0.5 mm²
Documentation & Downloads
Specifications
Classifications
| ETIM 6.0 | EC001059 |
|---|---|
| eClass 9.0 | 27-40-02-12 |
| eClass 10.0 | 27-40-02-12 |
| ETIM 7.0 | EC001059 |
|---|---|
| eClass 9.1 | 27-40-02-12 |
Connectors
| Conductor cross-section, max. | 0.5 mm² |
|---|---|
| Connection length (I) | 12 mm |
| Inside diameter of flange (d2) | 4.3 mm |
| Insulation | not available |
| Shaft length (a) | 4 mm |
| Conductor cross-section, min. | 0.1 mm² |
|---|---|
| Hole | M 4 |
| Inside diameter of shaft (d1) | 1 mm |
| Outside diameter of shaft (d3) | 6.5 mm |
Dimensions And Weights
| Weight | 0.03 g |
|---|
| Net weight | 0.267 g |
|---|
Approvals
| ROHS | Conform |
|---|
