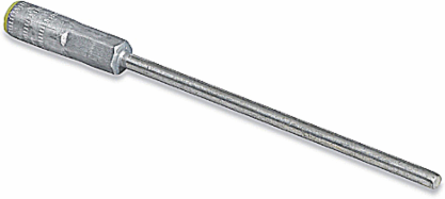

Blackburn U 5 U 4 Aluminum Compression Pin Terminals for 2 AWG Solid Aluminum and 4 ACSR, 2 Inch Length
- MPN: U 5 U 4
- UPC: 783786756858
- PPN: T-B-U 5 U 4
CAD
$22.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Compression Pin Terminals - U5 Series, conductor size Aluminum 2 Solid, 3 & 4 Stranded, 4 ACSR, installing dies 5/8,52,BG,TU,8A, solid Copper Pin 4 (.204), length (P) 2 inch.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121432 Electrical terminals |
|---|---|
| Brand Name | Blackburn |
| Special Features | Eliminates cold-flow problems of Aluminum conductor in Copper clamps. Oxide Inhibitor and Metal Sealant Prevent Oxidation and Protect Pin/Body from Moisture Intrusion. |
| Connection | Crimp / Compression |
| Material | Aluminum and Copper with Tin-Plated Pin |
| IGCC | 4603 Electrical terminals |
|---|---|
| Type | Aluminum Compression Pin Terminals |
| Application | Connect Aluminum and ACSR to Copper-Alloy Equipment Clamps. |
| Wire Size | Aluminum Solid #2, Stranded #3 and #4, ACSR #4 |
Packaging
| Inner Quantity | 50 |
|---|---|
| Outer Quantity | 200 |
| Weight Uom | 9.5 lbs. per 100 |
| Inner Dimensions (inches) | 6.4x6.3x4.1 |
|---|---|
| Outer Dimensions (inches) | 13.9x8.4x7.3 |
