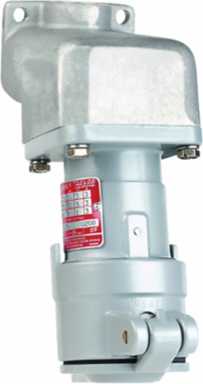

Killark KRAJAC-4604 Aluminum 60 Amp Feed-Thru Receptacle, 3W 4P, 115/230VAC, Hub 1-1/4 Inch
- MPN: KRAJAC-4604
- UPC: 783936390222
- PPN: HBL-KRAJAC-4604
- UNSPSC: 39121406
CAD
$3480.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
KR Series - Aluminum 60 Amp Receptacle With Feed-Thru Enclosure - 3W 4P Circuit - 115/230VAC At 60Hz - Hub Size 1-1/4 Inch
Features
- Suitable where a connection is required for portable or movable equipment such as tools, motors, hand lights, etc.
- Wire leads for termination
- Factory sealed receptacles
- Copper free aluminum housing
- Straight or angle type back boxes
- Delayed action contacts ensure safe interconnect
- Extra long grounding pin makes contact first and breaks contact last
- Factory sealed receptacles. Copper free aluminum. Delayed action contacts. Extra long grounding pole makes contact first and breaks contact last. Heavy duty construction to withstand rough and constant usage.
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB,IIA
- Hub Size
- 1-1/4"
- Amperage Rating
- 60 A
- Color
- Gray
- Number of Poles
- 3
- Size
- 15.75 in x 7 in x 5.63 in
- Type
- Pin & Sleeve
- Nema Rating
- 7 (C, D)
- Number Of Wires
- 4
- Class Code
- D35
- Freight Class Code
- 06168002
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Factory Sealed
- Factory Sealed
- Hub Pattern
- Feed-Thru
- Receptacle Type
- Delayed Action
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936390222
- NAICS Code
- 335931A104
Dimensions15.75 in x 7 in x 5.63 in
Height5.63 in
Length15.75 in
ApplicationKR Series receptacles are suitable: in hazardous locations due to the presence of flammable vapors or gases;where a heavy duty plug and receptacle is necessary;where a connection is required for portable or movable equipment such as tools, motors, hand
NEMA Rating7 (C, D)
Number of Wires4
Special FeaturesFactory sealed receptacles. Copper free aluminum. Delayed action contacts. Extra long grounding pole makes contact first and breaks contact last. Heavy duty construction to withstand rough and constant usage.
Width7 in
Number Of Poles3
ARRA CompliantContact Manufacturer
Description - InvoiceCLI 60A 3W4P W/1-11/4" AJAC BOX
Harmonization Code8536694020
Lead Time20 wk
Order Multiple1 EA
Sub Class CodeD35D260
Gross Weight with Packaging7.8
MaterialAluminum, Copper Free (less than 4/10 of 1%)
SeriesKR Series
BOX SIZE(in)
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
