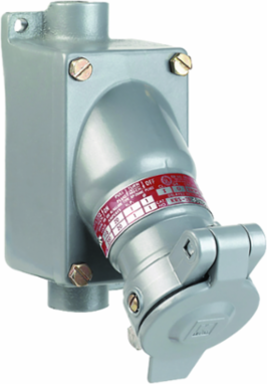

Killark KRS-218-220 20 Amp Aluminum Feed-Thru Receptacle, Hub Size 3/4 Inch, NEMA 3, 4, 4X
- MPN: KRS-218-220
- UPC: 783936390093
- PPN: HBL-KRS-218-220
- UNSPSC: 39121406
CAD
$1452.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
KR Series - Aluminum 20 Amp Receptacle With Feed-Thru Enclosure - 2W 3P Circuit - 115/230VAC At 60Hz - Hub Size 3/4 Inch
Features
- Suitable where a connection is required for portable or movable equipment such as tools, motors, hand lights, etc.
- Wire leads for termination
- Factory sealed receptacles
- Copper free aluminum housing
- Straight or angle type back boxes
- Delayed action contacts ensure safe interconnect
- Extra long grounding pin makes contact first and breaks contact last
- Factory sealed receptacles. Copper free aluminum. Delayed action contacts. Extra long grounding pole makes contact first and breaks contact last. Heavy duty construction to withstand rough and constant usage.
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB,IIA
- Hub Size
- 3/4"
- Amperage Rating
- 20 A
- Color
- Gray
- Number of Poles
- 2
- Size
- 6.88 in x 3.75 in x 5.5 in
- Type
- Pin & Sleeve
- Nema Rating
- 3, 4, 4X, 7(B, C, D), 9(F, G)
- Number Of Wires
- 3
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- CL1 20A2W3P REC/3/4"FDTHRU BX
- Harmonization Code
- 8536694020
- Lead Time
- 15 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D35D260
- Gross Weight with Packaging
- 2.8
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Series
- KR Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions6.88 in x 3.75 in x 5.5 in
Height5.5 in
Length6.88 in
ApplicationKR Series receptacles are suitable: in hazardous locations due to the presence of flammable vapors or gases;where a heavy duty plug and receptacle is necessary;where a connection is required for portable or movable equipment such as tools, motors, hand
NEMA Rating3, 4, 4X, 7(B, C, D), 9(F, G)
Number of Wires3
Special FeaturesFactory sealed receptacles. Copper free aluminum. Delayed action contacts. Extra long grounding pole makes contact first and breaks contact last. Heavy duty construction to withstand rough and constant usage.
Width3.75 in
Number Of Poles2
Operating Cycles10,000 operations
Class CodeD35
Freight Class Code06168002
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Factory SealedFactory Sealed
Hub PatternFeed-Thru
Receptacle TypeDelayed Action
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936390093
NAICS Code335931A104
Certifications
- EU RoHS Indicator
- Contact Manufacturer
