Weidmuller 1496180000 KWN-M6/-25 45
- MPN: 1496180000
- PPN: WDM-1496180000
CAD
$4.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

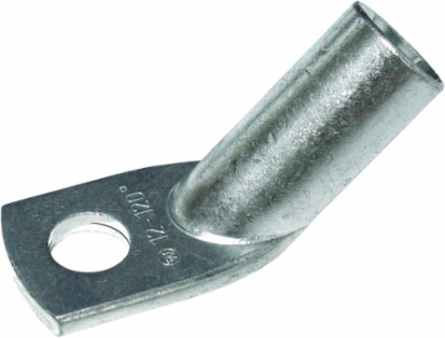

cable lug, terminal end,25 mm²
Documentation & Downloads
Specifications
Connectors
- Conductor cross-section
- 25 mm²
- Hole
- M 6

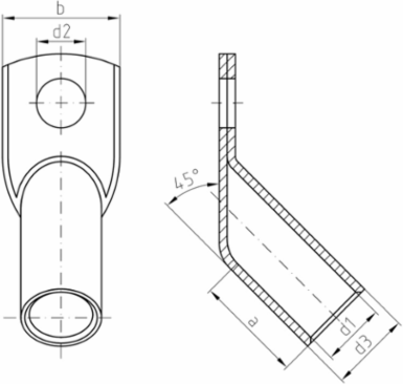

- Inside diameter of shaft (d1)
- 7 mm
- Outside diameter of shaft (d3)
- 10 mm
Flange width (b)15 mm
Inside diameter of flange (d2)6.4 mm
Insulationnot available
Shaft length (a)14 mm
Approvals
- Approvals
- CULUS
- UL File Number Search
- E354986
ROHSConform
Dimensions And Weights
- Weight
- 1.39 g
Net weight13.9 g
Classifications
- ETIM 6.0
- EC001051
- eClass 9.0
- 27-40-02-05
- eClass 10.0
- 27-40-02-05
ETIM 7.0EC001051
eClass 9.127-40-02-05
Technical Data
- Version
- Euro series, 45°
