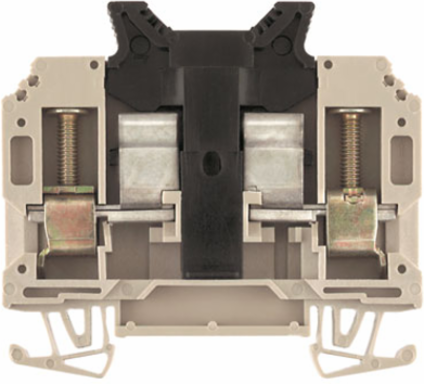

Weidmuller 9509600000 KSKM 1/35 G20
- MPN: 9509600000
- PPN: WDM-9509600000
CAD
$40.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAK Series, Fuse terminal, Rated cross-section: 10 mm², Screw connection, Wemid, dark beige, Direct mounting
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, EAC, UR
- UL File Number Search
- E60693
ROHSConform
Display Element
- Operating voltage for display, max.
- 250 V
Type of voltage for indicatorAC/DC
Dimensions And Weights
- Width
- 13 mm
- Height
- 69 mm
- Depth
- 63 mm
- Net weight
- 45.25 g
Width (inches)0.512 inch
Height (inches)2.717 inch
Depth (inches)2.48 inch
Fuse Terminals
- Cartridge fuse
- G-Si. 5 x 20
- Operating voltage, max.
- 250 V
Fuse holder (cartridge holder)pluggable
Type of voltage for indicatorAC/DC
Additional Technical Data
- Explosion-tested version
- No
- Number of similar terminals
- 1
- Type of mounting
- Snap-on
Installation adviceDirect mounting
Open sidesright
Material Data
- Material
- Wemid
- Colour
- dark beige
Insulating materialWemid
UL 94 flammability ratingV-0
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000899
- eClass 9.0
- 27-14-11-16
- eClass 10.0
- 27-14-11-16
ETIM 7.0EC000899
eClass 9.127-14-11-16
UNSPSC30-21-18-11
System Specifications
- Version
- Screw connection, Fuse isolator, One end without connector
- Number of levels
- 1
- Levels cross-connected internally
- No
- Rail
- TS 35
End cover plate requiredYes
Number of clamping points per level2
PE connectionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 10 mm²
- Rated current
- 6.3 A
- Volume resistance according to IEC 60947-7-x
- 0.56 mΩ
Rated voltage250 V
Current at maximum wires6.3 A
Power loss in accordance with IEC 60947-7-x1.82 W
Conductors For Clamping (Rated Connection)
- Blade size
- 1.0 x 5.5 mm
- Clamping range, min.
- 0.13 mm²
- Connection direction
- on side
- Number of connections
- 2
- Tightening torque, max.
- 2.4 Nm
- Type of connection
- Screw connection
- Wire connection cross section AWG, min.
- AWG 22
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire connection cross-section, solid core, min.
- 0.5 mm²
Clamping range, max.16 mm²
Clamping screwM 4
Gauge to IEC 60947-1B6
Stripping length12 mm
Tightening torque, min.1.2 Nm
Wire connection cross section AWG, max.AWG 8
Wire connection cross section, finely stranded, max.10 mm²
Wire connection cross-section, solid core, max.16 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 26 AWG
- Conductor size Field wiring min. (UR)
- 22 AWG
- Voltage size C (UR)
- 600 V
Conductor size Factory wiring max. (UR)8 AWG
Conductor size Field wiring max. (UR)8 AWG
Current size C (UR)10 A
