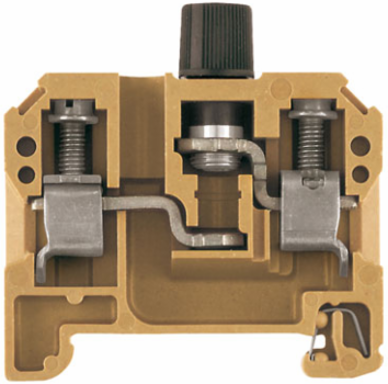

Weidmuller 0501600000 SAKS 1/35/G20 DB
- MPN: 0501600000
- PPN: WDM-0501600000
CAD
$50.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAK Series, Fuse terminal, Rated cross-section: 10 mm², Screw connection, dark beige, Direct mounting
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CSA, EAC, GERMLLOYD, LLOYDSREG, MARITREG, UR
- UL File Number Search
- E60693
ROHSConform
Display Element
- Operating voltage for display, max.
- 500 V
Type of voltage for indicatorAC/DC
Dimensions And Weights
- Width
- 13 mm
- Height
- 54 mm
- Depth
- 53 mm
- Net weight
- 38.6 g
Width (inches)0.512 inch
Height (inches)2.126 inch
Depth (inches)2.087 inch
Fuse Terminals
- Cartridge fuse
- G-Si. 5 x 20
- Fuse holder (cartridge holder)
- for screw fixing
- Type of voltage for indicator
- AC/DC
DisplayWithout LED
Operating voltage, max.500 V
Csa Rating Data
- Certificate No. (CSA)
- 12400-198
- Voltage size C (CSA)
- 600 V
- Wire cross section min. (CSA)
- 26 AWG
Current size C (CSA)10 A
Wire cross section max. (CSA)10 AWG
Additional Technical Data
- Explosion-tested version
- No
- Number of similar terminals
- 1
- Type of mounting
- Snap-on
Installation adviceDirect mounting
Open sidesright
Material Data
- Material
- KrG
- UL 94 flammability rating
- V-0, 5VA
Colourdark beige
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000899
- eClass 9.0
- 27-14-11-16
- eClass 10.0
- 27-14-11-16
ETIM 7.0EC000899
eClass 9.127-14-11-16
UNSPSC30-21-18-11
System Specifications
- Version
- Screw connection, Fuse cartridge, One end without connector
- Number of potentials
- 1
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 130 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-60 °C
Conductors For Clamping (Additional Connection)
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
- 10 mm²
Rating Data
- Rated cross-section
- 10 mm²
- Rated current
- 10 A
- Volume resistance according to IEC 60947-7-x
- 0.56 mΩ
- Rated impulse withstand voltage
- 6 kV
Rated voltage500 V
Current at maximum wires10 A
Power loss in accordance with IEC 60947-7-x1.82 W
Pollution severity3
Conductors For Clamping (Rated Connection)
- Blade size
- 1.0 x 5.5 mm
- Clamping range, min.
- 0.13 mm²
- Connection cross-section, stranded, max.
- 10 mm²
- Connection direction
- on side
- Number of connections
- 2
- Tightening torque, max.
- 2.4 Nm
- Torque level with DMS electric screwdriver
- 4
- Wire connection cross section AWG, max.
- AWG 10
- Wire connection cross section, finely stranded, max.
- 10 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 16 mm²
Clamping range, max.16 mm²
Clamping screwM 4
Connection cross-section, stranded, min.1.5 mm²
Gauge to IEC 60947-1B6
Stripping length12 mm
Tightening torque, min.1.2 Nm
Type of connectionScrew connection
Wire connection cross section AWG, min.AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.10 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 26 AWG
- Conductor size Field wiring min. (UR)
- 22 AWG
- Voltage size C (UR)
- 600 V
Conductor size Factory wiring max. (UR)8 AWG
Conductor size Field wiring max. (UR)10 AWG
Current size C (UR)6.3 A
