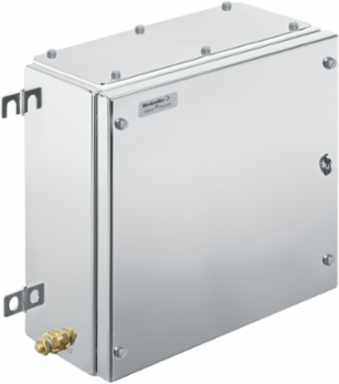

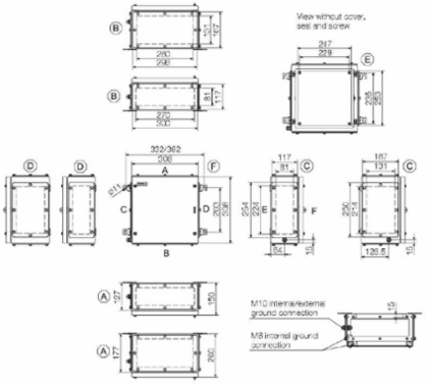

Weidmuller 1194790000 Klippon TB MH Multi Hinge Terminal Box, 306x306x200 mm, Stainless Steel
- MPN: 1194790000
- PPN: WDM-1194790000
CAD
$2596.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Klippon TB MH (Terminal Box - Multi Hinge), Empty enclosure, stainless steel enclosure, Height: 306 mm, Width: 306 mm, Depth: 200 mm, Gland plates: Bottom, top, left, right, Material: Stainless steel 1.4404 (316L), electropolished, silver
Documentation & Downloads
Specifications
Approvals
- Approvals
- CCOE, CE, CULUS, DNV GL, EAC, IBEXUATEX, IECEXIBE, IECEXKEM, IECEXPTB, INMETRO, KEMAATEX, KOREANCERT, MARITREG, NEPSI, PTBATEX
- UL File Number Search
- E243298
ROHSConform
Dimensions And Weights
- Width
- 306 mm
- Height
- 306 mm
- Depth
- 200 mm
- Mounting dimension - width
- 362 mm
- Net weight
- 9,180 g
Width (inches)12.047 inch
Height (inches)12.047 inch
Depth (inches)7.874 inch
Mounting dimension - height203 mm
Horizontal Assembly
- WDU 10 / ZDU 10
- 1x22
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 2x43
- WDU 4 / ZDU 4
- 2x36
WDU 16 / ZDU 161x18
WDU 35 / ZDU 351x13
WDU 6 / ZDU 62x27
Housing Earth
- Earth, enclosure, internal
- Welded-on M6 stainless-steel earth stud in enclosure body and lid.
Classifications
- ETIM 6.0
- EC002503
- eClass 9.0
- 27-18-05-02
- eClass 10.0
- 27-18-05-02
ETIM 7.0EC002503
eClass 9.127-18-05-02
Product Information
- Product information
- Minimum Order Quantity is applicable (20 pcs.).**Customer specific test is required for application compliance.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Vertical Assembly
- WDU 10 / ZDU 10
- 1x22
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 2x44
- WDU 4 / ZDU 4
- 2x37
WDU 16 / ZDU 161x19
WDU 35 / ZDU 351x14
WDU 6 / ZDU 62x28
Cable Glands, Top/Bottom
- M12
- 40 ???New14???
- M20
- 17 ???New14???
- M32
- 8
- M50
- 3
- M75
- 2
M1626 ???New14???
M2514 ???New14???
M406
M632
Cable Glands, Right
- M12
- 33 ???New14???
- M20
- 14 ???New14???
- M32
- 6
- M50
- 2
- M75
- 1
M1622
M2512 ???New14???
M405
M632
Cable Glands, Left
- M12
- 33 ???New14???
- M20
- 14 ???New14???
- M32
- 6
- M50
- 2
- M75
- 1
M1622
M2512 ???New14???
M405
M632
General Information
- AF size 1
- 10 mm
- Access opening: width
- 247 mm
- Gland plates
- Bottom, top, left, right
- Material thickness
- 1.5 mm
- Material thickness of flange
- 3 mm
- Opening angle lid
- 130 °
- Position PE bolts
- Page C
- Torque for lid screws
- 2.5 Nm
- Seal material
- Silicone
- Operating temperature, min.
- -60 °C
- Impact resistance
- 7 J ATEX version, 10 J version standard
- Note: protection class
- If used in temperature ranges above 105 °C, IP protection is limited to IP 66.
- Lid attachment
- 4 hinges and M6 hex-head slotted screws SW10
Access opening: height253 mm
Areas of useExplosive risk zone, Process industry, Oil and gas industry, Chemical industry, Offshore, Onshore
Installation adviceTerminal rail / mounting plate
Material thickness of cover1.5 mm
Max. payload37 kg
Overall dimensions328 x 387 x 215
StandardsDIN EN 62208 - Empty enclosure standard, DIN EN 61373 Class 1B**, DIN EN 15085-2, EN 60079-0, EN 60079-7, EN 60079-31, IEC 60079-0, IEC 60079-7, IEC 60079-31
MaterialStainless steel 1.4404 (316L)
Surface finishelectropolished
Operating temperature, max.135 °C
Protection degreeIP66, IP67
Enclosure attachment4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet)
Integral fixing4, 6 or 9 stud bolts M6 inner (female) thread
Certificate Numbers Enclosure
- Certificate no. assembled enclosure (ATEX)
- IBExU14ATEX1050
- Certificate no. assembled enclosure (IECEx)
- IECEXIBE14.0013
- Certificate no., assembled enclosure (EAC)
- RU C-DE.ГБ08.B.01328
- Certificate no. assembled enclosure (INMETRO)
- IEx 17.0021
- Certificate no. assembled enclosure (AEx)
- E223792
- Certificate no. assembled enclosure (NEPSI)
- GYJ14.1309
- Certificate No. (MARITREG)
- 15.40073.250
- Certificate No. (CCOE)
- CCOEP267536/1
Certificate no. empty enclosure (ATEX)IBExU14ATEX1028 U
Certificate no. empty enclosure (IECEx)IECEx IBE 14.0004U
Certificate no., empty enclosure (EAC)RU C-DE.ГБ08.B.00472
Certificate no. empty enclosure (INMETRO)IEx 17.0020U
Certificate no. empty enclosure (NEPSI)GYJ14.1308U
Certificate no., assembled enclosure (KOSHA)16-AV4BO-0245X
Certificate no. (cULus)E243298
