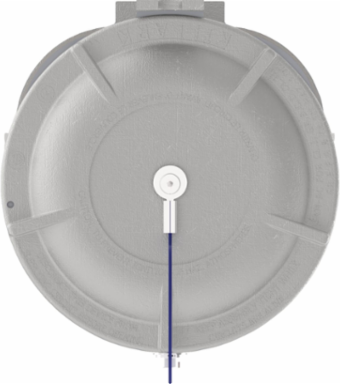

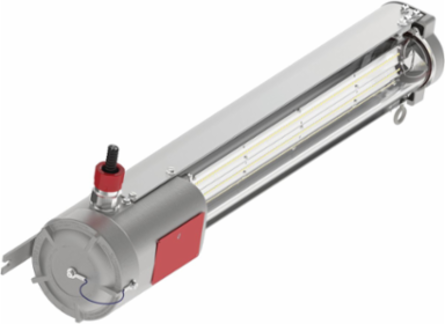

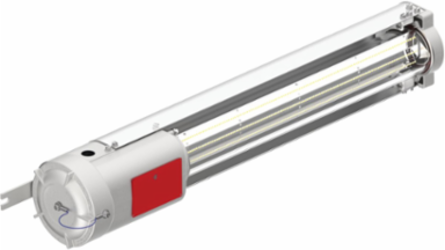

Killark L1L1030C 10,000 Lumen Linear LED Fixture, 5000K, 120-277V, IP66, Glass Lens
- MPN: L1L1030C
- UPC: 783936174532
- PPN: HBL-L1L1030C
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
L1L Series 10,000 Lumen Output 5000K CCT, 120-277 Universal Voltage With Clear Glass Optic
Features
- Tool-less access to wiring chamber

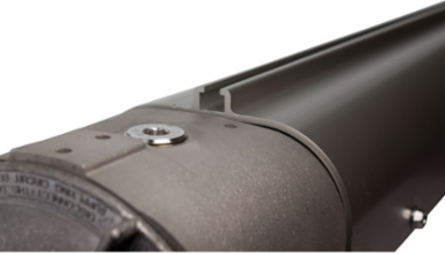

- Slot-back design allows for a 5/16 or M8 bolt to be mounted anywhere along the back of the luminaire
- High Efficacy up to 153 lumens per watt delivered
- Corrosion resistant Copper-free housing
- Standard supplemental 6KV surge protection
- Optional supplementary surge protection available 20KA/10KV (120-277 VAC), 10KA/10KV (347-480 VAC)
- The L1L Series Linear LED are high quality explosion-proof light fixtures. Designed to go into the harshest environments where explosive vapors are present. Killark linear LED provide a crisp white light that is great for color rendering.
Specifications
Key Specifications
- ARRA Compliant
- Contact Manufacturer
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- IP Rating
- IP66
- Optic Type
- Glass Lens
- Color Temperature
- 5000 K
- Mounting Type
- Pendant or Surface
- Wattage
- 68.5 W
- Description - Invoice
- L1L 10000L LED 120-277VAC CLEAR LENS
- Harmonization Code
- 9405429100
- MSDS Flag
- No
- Sub Class Code
- D20D201
- Lumens Per Watt
- 148.8
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936174532
Country of OriginUnited States
Hub Size3/4"
Lumens10190
Voltage Rating120-277 VAC
Finish TypeNatural
TypeLinear Light Fixture
Class CodeD20
Freight Class Code10970001
Image Actual Or RepresentativeA
Order Multiple1 EA
Lumen Range10,001-15,000 lm
Light SourceLED
SeriesL1L Series
BOX SIZE(in)
NAICS Code3351222100
