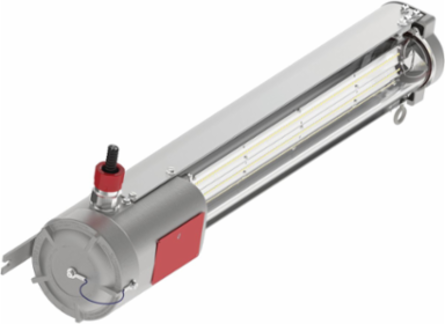

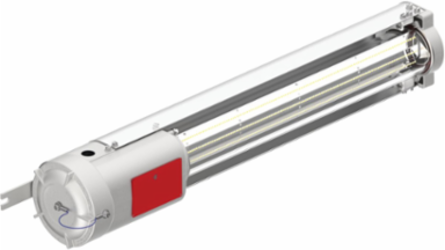

Killark L1L1230D Linear LED Fixture 12000 Lumen, 5000K CCT, 120-277VAC, IP66, 80.4W

Linear LED Fixture 12000 Lumen, 5000K CCT, 120-277VAC, IP66, 80.4W - https://media.province-electric.com/325/synd_hubbell/medium/d6666c5d3d65ae223515ce9193600d8a12222b4a-medium.png

Linear LED Fixture 12000 Lumen, 5000K CCT, 120-277VAC, IP66, 80.4W - https://media.province-electric.com/325/synd_hubbell/medium/9115d8005267e2303574328b928b39c410828238-medium.png

Linear LED Fixture 12000 Lumen, 5000K CCT, 120-277VAC, IP66, 80.4W - https://media.province-electric.com/325/synd_hubbell/medium/0679c9d1046705b47c94552060743999a109bc24-medium.png

Linear LED Fixture 12000 Lumen, 5000K CCT, 120-277VAC, IP66, 80.4W

MPN: L1L1230D
UPC: 783936174617
PPN: HBL-L1L1230D

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

L1L Series 12,000 Lumen Output 5000K CCT, 120-277 Universal Voltage With Clear Glass Optic

Features

Tool-less access to wiring chamber

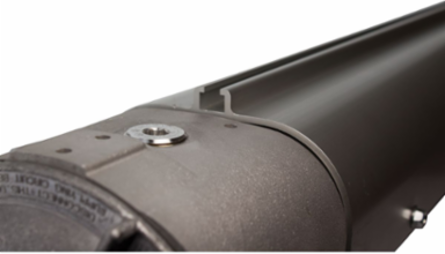

Slot-back design allows for a 5/16 or M8 bolt to be mounted anywhere along the back of the luminaire
High Efficacy up to 153 lumens per watt delivered
Corrosion resistant Copper-free housing
Standard supplemental 6KV surge protection
Optional supplementary surge protection available 20KA/10KV (120-277 VAC), 10KA/10KV (347-480 VAC)
The L1L Series Linear LED are high quality explosion-proof light fixtures. Designed to go into the harshest environments where explosive vapors are present. Killark linear LED provide a crisp white light that is great for color rendering.

Specifications

Country of Origin: United States

Hub Size: 3/4"

Lumens: 8919

Voltage Rating: 120-277 VAC

Finish Type: Natural

Type: Linear Light Fixture

ARRA Compliant: Contact Manufacturer

Description - Invoice: L1L 12000L LED 120-277VAC DIF LENS

Harmonization Code: 9405116020

MSDS Flag: No

Sub Class Code: D20D201

Lumens Per Watt: 110.9

Material: Aluminum, Copper Free (less than 4/10 of 1%)

Base Unit of Measure: EA

Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2

IP RatingIP66

Optic TypeDiffused Glass Lens

Color Temperature5000 K

Mounting TypePendant or Surface

Wattage80.4 W

Class CodeD20

Freight Class Code10970001

Image Actual Or RepresentativeA

Order Multiple1 EA

Lumen Range5,001-10,000 lm

Light SourceLED

SeriesL1L Series

Carton - SCC-14 Next Lower Level Sub Pack00783936174617

Certifications

EU RoHS Indicator: Contact Manufacturer
