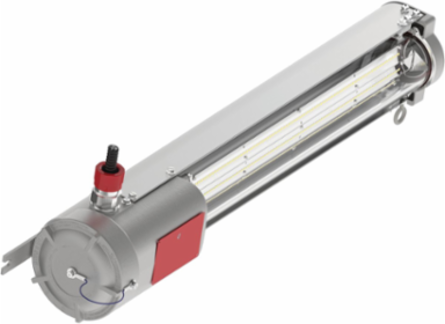

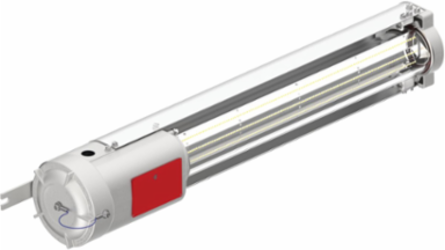

Killark L1L1430C Linear LED Light Fixture 14000 Lumen Output 5000K CCT 120-277 VAC IP66

MPN: L1L1430C
UPC: 783936174679
PPN: HBL-L1L1430C

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

L1L Series 14,000 Lumen Output 5000K CCT, 120-277 Universal Voltage With Clear Glass Optic

Features

Tool-less access to wiring chamber

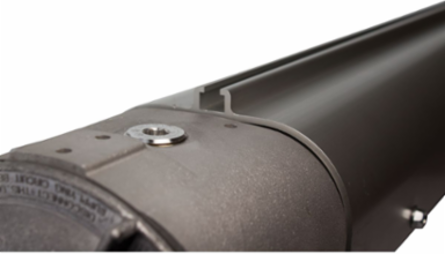

Slot-back design allows for a 5/16 or M8 bolt to be mounted anywhere along the back of the luminaire
High Efficacy up to 153 lumens per watt delivered
Corrosion resistant Copper-free housing
Standard supplemental 6KV surge protection
Optional supplementary surge protection available 20KA/10KV (120-277 VAC), 10KA/10KV (347-480 VAC)
The L1L Series Linear LED are high quality explosion-proof light fixtures. Designed to go into the harshest environments where explosive vapors are present. Killark linear LED provide a crisp white light that is great for color rendering.

Specifications

ARRA Compliant: Contact Manufacturer

Hazardous Rating(s): Class I, Divisions 1 & 2, Groups B, C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2

IP Rating: IP66

Optic Type: Glass Lens

Color Temperature: 5000 K

Mounting Type: Pendant or Surface

Wattage: 91.8 W

Description - Invoice: L1L 14000L LED 120-277VAC CLEAR LENS

Harmonization Code: 9405429100

MSDS Flag: No

Sub Class Code: D20D201

Lumens Per Watt: 138.6

Material: Aluminum, Copper Free (less than 4/10 of 1%)

Base Unit of Measure: EA

Country of OriginUnited States

Hub Size3/4"

Lumens12720

Voltage Rating120-277 VAC

Finish TypeNatural

TypeLinear Light Fixture

Class CodeD20

Freight Class Code10970001

Image Actual Or RepresentativeA

Order Multiple1 EA

Lumen Range10,001-15,000 lm

Light SourceLED

SeriesL1L Series

Carton - SCC-14 Next Lower Level Sub Pack00783936174679

Certifications

EU RoHS Indicator: Contact Manufacturer
