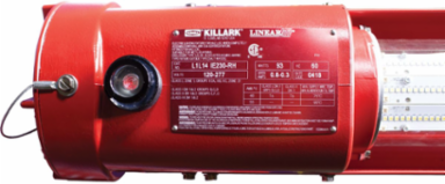

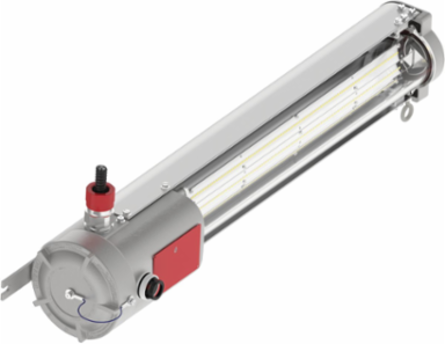

Killark L1L7IE130D L1L Series LED Linear Light Fixture, 7000 Lumen, 5000K CCT, 120-277 VAC, IP66
Killark L1L7IE130D L1L Series LED Linear Light Fixture, 7000 Lumen, 5000K CCT, 120-277 VAC, IP66
- MPN: L1L7IE130D
- UPC: 783936174785
- PPN: HBL-L1L7IE130D
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
L1L Series 7,000 Lumen Output 5000K CCT, 90 minute 1,000 lumen battery backup, 120-277 Universal Voltage With Diffuse Glass Optic
Features

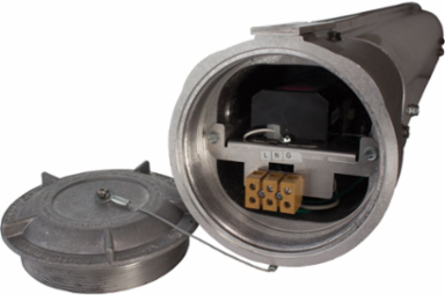

- Tool-less access to wiring chamber

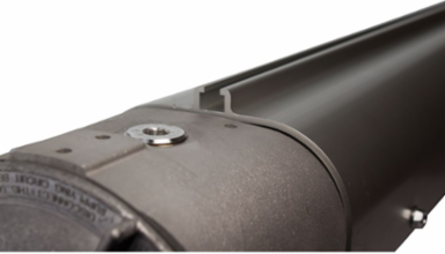

- Slot-back design allows for a 5/16 or M8 bolt to be mounted anywhere along the back of the luminaire
- High Efficacy up to 153 lumens per watt delivered
- Corrosion resistant Copper-free housing
- Standard supplemental 6KV surge protection
- Optional supplementary surge protection available 20KA/10KV (120-277 VAC), 10KA/10KV (347-480 VAC)
- 90 & 180 minute battery backup options
- Self-Testing per NFPA 101® Life Safety Code
- Self-diagnostics monitors emergency LED status, emergency LED driver circuit, battery capacity, and charger function
- Bright Colored LED provides visual fault detection and charging status
- The L1L Series Linear LED are high quality explosion-proof light fixtures. Designed to go into the harshest environments where explosive vapors are present. Killark linear LED provide a crisp white light that is great for color rendering with Intellegent Self-Testing and Self-Diagnosing battery backup.
Specifications
Specifications
- Country of Origin
- United States
- Hub Size
- 3/4"
- Lumens
- 5598
- Voltage Rating
- 120-277 VAC
- Finish Type
- Natural
- Type
- Linear Light Fixture
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- L1L 7000L EMER 120-277VAC DIF LENS
- Harmonization Code
- 9405426000
- MSDS Flag
- No
- Sub Class Code
- D20D201
- Lumens Per Watt
- 120.4
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
IP RatingIP66
Optic TypeDiffused Glass Lens
Color Temperature5000 K
Mounting TypePendant or Surface
Wattage46.5 W
Class CodeD20
Freight Class Code06068001
Image Actual Or RepresentativeA
Order Multiple1 EA
Lumen Range5,001-10,000 lm
Light SourceLED
SeriesL1L Series
Carton - SCC-14 Next Lower Level Sub Pack00783936174785
Certifications
- EU RoHS Indicator
- Contact Manufacturer
