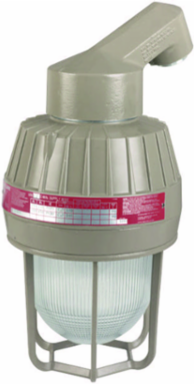

Killark EML4530D4G LED High Bay/Low Bay Light Fixture 45 Watt 120-277 VAC 3479 Lumens
Killark EML4530D4G LED High Bay/Low Bay Light Fixture 45 Watt 120-277 VAC 3479 Lumens
- MPN: EML4530D4G
- UPC: 783936084558
- PPN: HBL-EML4530D4G
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
The EML Series LED High Bay/ Low Bay fixtures are high quality explosion proof light fixtures. Designed to go into the harshest environments where explosive vapors are present .
Features
- Compact Explosion-proof with Traditional Industrial Appearance and Suitability
- Fluted or Exclusive Clear Globe
- Dome or Angle Reflectors
- Optional Mounting arrangements including Pendant, Wall, Ceiling, and Stanchion
- EML LED Housings can be retrofitted to existing EZ splice boxes to upgrade from Incandescent, Fluorescent or HID
- Energy Savings – Less than 55 Watts of Power
- Long Life – 50,000 - 55,000 Maintenance Free Hours to 70% Initial Lumens
- Crisp White Light for Excellent Color Rendering – Chromaticity 5000K CCT range approx. 70 CRI
- Ambient suitability -40°C to 55°C
- Instant on – Including after power interruption
- World Voltage 120-277VAC 50/60Hz
- Solder-LESS LED Board Connections – Vibration Resistant
- LM80-08 Measurement of lumen maintenance for LED light sources
- LM79-08 Certified “Absolute” Photometry, including Chromaticity Color for Solid State Lighting
- L70 Values - Industry Nomenclature for Hours of use to 70% of Initial Lumens (TM-21+ Cal.)
- Factory Sealed Construction – No external seal required
- Suitable for Paint Spray Booth Applications
- The EML Series LED High Bay/ Low Bay fixtures are high quality explosion proof light fixtures. Designed to go into the harshest environments where explosive vapors are present .
Specifications
Specifications
- Country of Origin
- United States
- Hub Size
- 1-1/4"
- Optic Type
- Glass Globe - Fluted
- Engineering Drawing 1 Display Text
- EMLxxxxDxGLG 2D - Engineering Drawing
- Frequency Rating
- 50/60 Hz
- Wattage
- 45 W
- Class Code
- D20
- Freight Class Code
- 06316009
- Image Actual Or Representative
- A
- Sub Class Code
- D20D201
- Lumens Per Watt
- 77.3
- Series
- EML Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936084558
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Lumens3479
Voltage Rating120-277 VAC
Finish TypePowder Epoxy Paint
Mounting TypeStanchion 25°
ARRA CompliantContact Manufacturer
Description - InvoiceEML 45W D4 GRD
Harmonization Code9405416000
MSDS FlagNo
Lumen Range2,001-5,000 lm
Light SourceLED
Base Unit of MeasureEA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
