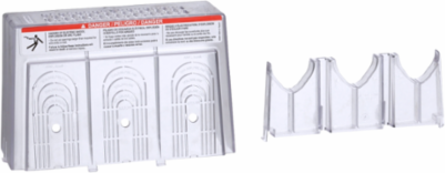

Square D LALLC NQ Panelboard Accessory Cover Line Lug IP2X
- MPN: LALLC
- UPC: 785901639886
- PPN: SCH-LALLC
CAD
$219.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ and NF Panelboards have modular construction to accept field installable accessories and conversion kits. This panelboard accessory is a service entrance barrier kit. This kit is for LA and LH circuit breakers.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.1163717684, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0149039421, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | N |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Circuit Breaker Type | LA/LH |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2303004EN |
| Pep Verification Date | 2023-07-15 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908160 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.9 kg CO2 eq., 0.9413599303 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 3 kg CO2 eq., 2.5962496417 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Or Component Type | cover |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 4 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1270 mm x 508 mm x 146.05 mm,and NEMA 1& 10- followed standard: UL 67 UL 50E and CSA22.2 |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Electricity Mix; Production mix; Low voltage; MX |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA |
| Recyclability Potential In % | 93 |
| Package Weight(Lbs) | 403.697 g |
| Warranty (In Months) | 18 |
General Attributes
| Product Or Component Type | cover |
|---|
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 3.6688852825 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2303004EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2303004EN |
| Ip Degree Of Protection | IP2X |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-07-15 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
