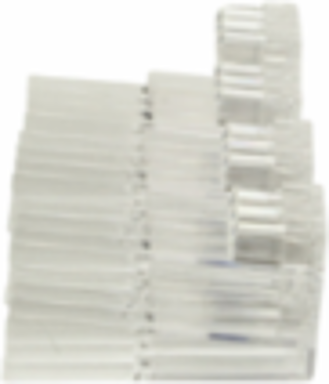

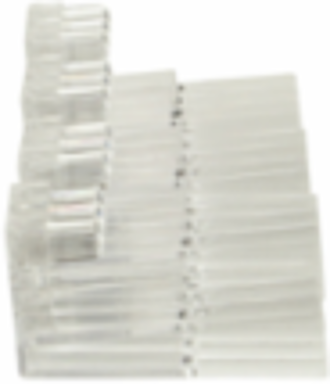

Schneider Electric VLSC3P1 Disconnect switch, Tesys VLS, set of 2 terminal covers, for 3 pole unit terminals, 16A to 40A devices

Disconnect switch, Tesys VLS, set of 2 terminal covers, for 3 pole unit terminals, 16A to 40A devices
Disconnect switch, Tesys VLS, set of 2 terminal covers, for 3 pole unit terminals, 16A to 40A devices
Disconnect switch, Tesys VLS, set of 2 terminal covers, for 3 pole unit terminals, 16A to 40A devices
Disconnect switch, Tesys VLS, set of 2 terminal covers, for 3 pole unit terminals, 16A to 40A devices
Disconnect switch, Tesys VLS, set of 2 terminal covers, for 3 pole unit terminals, 16A to 40A devices
  • MPN: VLSC3P1
  • PPN: SCH-VLSC3P1

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$49.97/ EA

Description

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This protective terminal cover is for the three poles of the main VLS disconnect switch. This protective cover can be added to a VLS3P016R1, VLS3P025R1, VLS3P032R1, VLS3P040R1 or VLS3P063R1 DIN rail mount disconnect switch. This protective cover can be added to a VLS3P016D1, VLS3P025D1, VLS3P032D1 or VLS3P040D1 door mount disconnect switch. Each package has two of these terminal protective covers. This protective terminal cover is 1.04 inches tall, 1.42 inches wide and 1.81 inches deep. The switch weighs 0.04 lbs. This protective cover is cULus Listed and meets IEC 60947-3 requirements.

Specifications

Complementary

Height
26.4 mm
Width
36 mm
Net Weight
0.018 kg
Fixing Modeclipped
Depth46 mm

Specifications

Range Compatibility
TeSys TeSys VARIO LS VLS3P
Accessory / Separate Part Category
protection accessory
Product Or Component Type
terminal cover
Range
TeSys
Poles Description3P
Quantity Per Setset of 2
Device Short NameVLSC

Offer Sustainability

China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury Free
Yes
Eu Rohs Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of Svhc
Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
