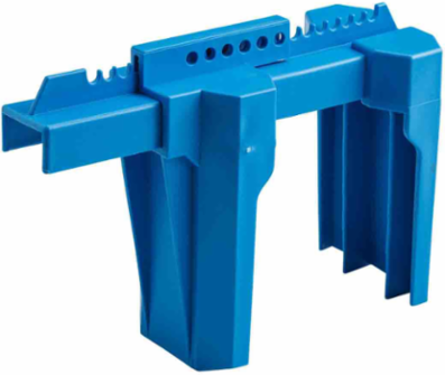

Brady BS08A-BU Large Ball Valve Lockout Device, Blue Pipe Diameter Range: 2 to 8 in
- MPN: BS08A-BU
- UPC: 754473453466
- PPN: BRD-BS08A-BU
- UNSPSC: 39121909
CAD
$58.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Patented design and ultra-tough polypropylene material make these devices the best choice to assuredly lock out your ball valves.
Features
- Large Ball Valve Lockout Device locks out pipes 2 in. to 8 in. in diameter
- Ultra-tough polypropylene resists temperatures from 0° to 175°F (-18° to 79°C)
- Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
- Brady® is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy-to-use lockout devices
Documentation & Downloads
Specifications
Key Specifications
| Ball Valve Lockout Type | Fits over Valve |
|---|---|
| Color | Blue |
| Enables Industry Compliance | OSHA 1910.147 |
| Open or Closed Valve | Closed |
| Risk Type | Mechanical Risk |
| Lockout Material | Polypropylene |
| Depth (in/ft/yd) | 12 in |
| Dimensions | 8.666 in H x 4.44 in W x 12 in D |
| Height (in/ft/yd) | 8.666 in |
| Maximum Handle Thickness (in/ft/yd) | 1 in |
| Maximum Handle Width (in/ft/yd) | 1.75 in |
| Maximum Pipe Diameter (in/ft/yd) | 8 in |
| Maximum Service Temperature °C | 150 °C |
| Maximum Shackle Diameter (in/ft/yd) | 0.313 in |
| Maximum Valve Size | 8 in |
| Minimum Pipe Diameter (mm/cm/m) | 50.8 mm |
| Minimum Service Temperature °F | -40 °F |
| Minimum Shackle Clearance - (mm/cm/m) | 19.05 mm |
| Pipe Diameter Range (in/ft/yd) | 2 to 8 in |
| Service Temperature Range °C | -40 °C to 150 °C |
| Sign Size-General | 8.666 in x 4.44 in |
| Width (in/ft/yd) | 4.44 in |
| Brand Name | Brady® |
|---|---|
| Conductivity | Conductive |
| Maximum Number of Padlocks | 2 |
| Primary Noun, Basic Function | Lockout Device |
| Brady Material Number | LOTO-22 |
| SAP B-Number | LOTO-22 |
| Depth (mm/cm/m) | 30.48 cm |
| Dimensions (Metric) | 220 mm H x 30.48 cm D |
| Height (mm/cm/m) | 220 mm |
| Maximum Handle Thickness (mm/cm/m) | 25.4 mm |
| Maximum Handle Width (mm/cm/m) | 44.45 mm |
| Maximum Pipe Diameter (mm/cm/m) | 203.2 mm |
| Maximum Service Temperature °F | 302 °F |
| Maximum Shackle Diameter (mm/cm/m) | 7.95 mm |
| Minimum Pipe Diameter (in/ft/yd) | 2 in |
| Minimum Service Temperature °C | -40 °C |
| Minimum Shackle Clearance (in/ft/yd) | 0.75 in |
| Minimum Valve Size (in/ft/yd) | 2 in |
| Pipe Diameter Range (mm/cm/m) | 50.8 mm to 203.2 mm |
| Service Temperature Range °F | -40 °F to 302 °F |
| Valve Size Range | 2 to 8 in |
| Width (mm/cm/m) | 112.78 mm |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Not Applicable |
| Contains 3TG Mineral | Not Applicable |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | No |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
