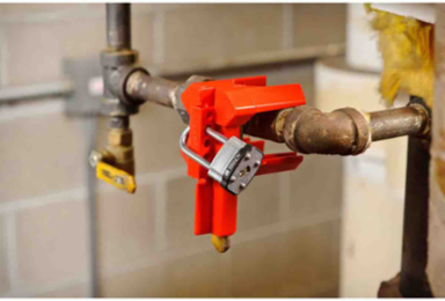

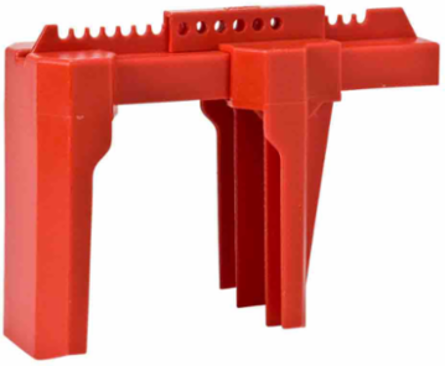

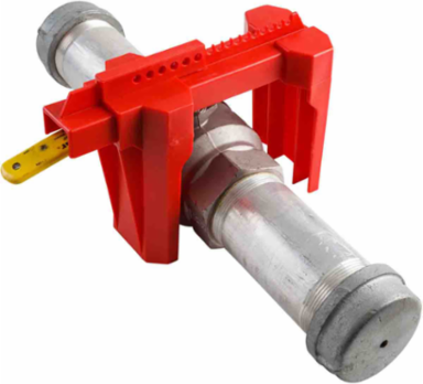

Brady BS08A-RD Large Ball Valve Lockout Device, Red Pipe Diameter Range: 2 to 8 in
- MPN: BS08A-RD
- UPC: 754473453459
- PPN: BRD-BS08A-RD
- UNSPSC: 39121909
CAD
$62.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Patented design and ultra-tough polypropylene material make these devices the best choice to assuredly lock out your ball valves.
Features
- Large Ball Valve Lockout Device locks out pipes 2 in. to 8 in. in diameter
- Ultra-tough polypropylene resists temperatures from 0° to 175°F (-18° to 79°C)
- Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
- Brady® is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy-to-use lockout devices
Documentation & Downloads
Specifications
Key Specifications
- Ball Valve Lockout Type
- Fits over Valve
- Color
- Red
- Enables Industry Compliance
- OSHA 1910.147
- Open or Closed Valve
- Closed
- Risk Type
- Mechanical Risk
- Lockout Material
- Polypropylene
- Depth (in/ft/yd)
- 12 in
- Dimensions
- 8.666 in H x 4.44 in W x 12 in D
- Height (in/ft/yd)
- 8.666 in
- Maximum Handle Thickness (in/ft/yd)
- 1 in
- Maximum Handle Width (in/ft/yd)
- 1.75 in
- Maximum Pipe Diameter (in/ft/yd)
- 8 in
- Maximum Service Temperature °C
- 150 °C
- Maximum Shackle Diameter (in/ft/yd)
- 0.313 in
- Maximum Valve Size
- 8 in
- Minimum Pipe Diameter (mm/cm/m)
- 50.8 mm
- Minimum Service Temperature °F
- -40 °F
- Minimum Shackle Clearance - (mm/cm/m)
- 19.05 mm
- Pipe Diameter Range (in/ft/yd)
- 2 to 8 in
- Service Temperature Range °C
- -40 °C to 150 °C
- Sign Size-General
- 8.666 in x 4.44 in
- Width (in/ft/yd)
- 4.44 in
Brand NameBrady®
ConductivityConductive
Maximum Number of Padlocks2
Primary Noun, Basic FunctionLockout Device
Brady Material NumberLOTO-22
SAP B-NumberLOTO-22
Depth (mm/cm/m)30.48 cm
Dimensions (Metric)220 mm H x 30.48 cm D
Height (mm/cm/m)220 mm
Maximum Handle Thickness (mm/cm/m)25.4 mm
Maximum Handle Width (mm/cm/m)44.45 mm
Maximum Pipe Diameter (mm/cm/m)203.2 mm
Maximum Service Temperature °F302 °F
Maximum Shackle Diameter (mm/cm/m)7.95 mm
Minimum Pipe Diameter (in/ft/yd)2 in
Minimum Service Temperature °C-40 °C
Minimum Shackle Clearance (in/ft/yd)0.75 in
Minimum Valve Size (in/ft/yd)2 in
Pipe Diameter Range (mm/cm/m)50.8 mm to 203.2 mm
Service Temperature Range °F-40 °F to 302 °F
Valve Size Range2 to 8 in
Width (mm/cm/m)112.78 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- Contains 3TG Mineral
- Not Applicable
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
