Brady 50899 Large Universal Valve Lockout Device Component
Brady 50899 Large Universal Valve Lockout Device Component
- MPN: 50899
- UPC: 754473508999
- PPN: BRD-50899
- UNSPSC: 39121909
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$92.69/ EA
Description

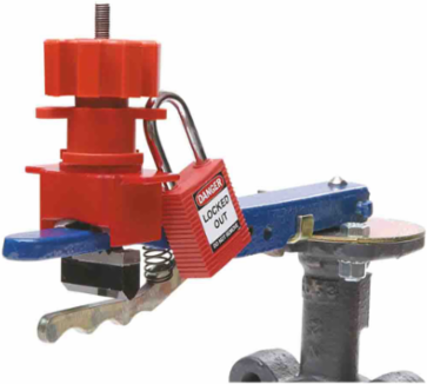

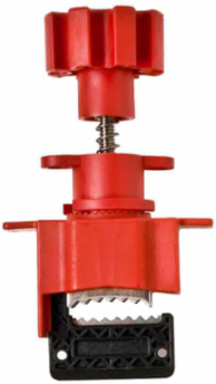

Lock out all types of valves with a single universal device! The universal valve lockout system from Brady® is rugged, easy to use and replaces the need for multiple devices.
Features
- Made of rugged industrial-grade steel and nylon for extra impact and chemical resistance
- Versatile open-ended clamp fits over most closed rings and wide handles
- Blocking arm and cable attachment sold separately

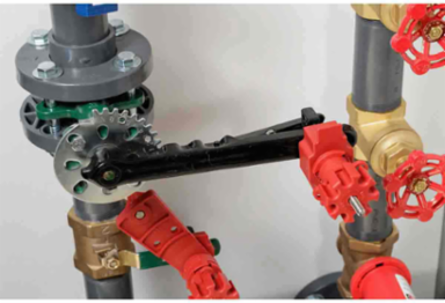

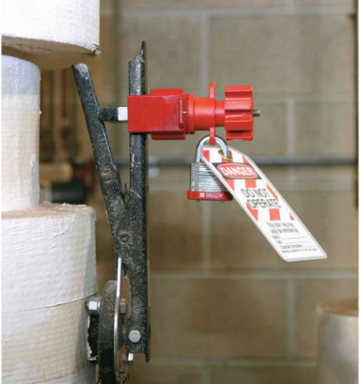

- Device can also lock out large levers, T handles and other hard-to-secure mechanical devices
Specifications
Specifications
- Brand Name
- Brady®
- Component Type
- Base Clamping Unit
- Maximum Number of Padlocks
- 2
- Risk Type
- Mechanical Risk
- Total Qty per Pack
- 1 Piece(s) / Pack
- Base Clamping Unit Material
- Fiberglass Reinforced Nylon
- Brady Material Number
- LOTO-24
- SAP B-Number
- LOTO-24
- Base Clamping Unit Height (mm/cm/m)
- 162.1 mm
- Height (mm/cm/m)
- 162.00 mm
- Maximum Handle Thickness (mm/cm/m)
- 27.94 mm
- Maximum Handle Width (mm/cm/m)
- 40.64 mm
- Maximum Shackle Diameter (in/ft/yd)
- 0.375 in
- Minimum Service Temperature °C
- -20 °C
- Size - Width (mm)
- 39.40 mm
ColorRed
Enables Industry ComplianceOSHA 1910.147
Primary Noun, Basic FunctionLockout Device
Steel TypeIndustrial-Grade
Adhesive (Y/N)No
Blocking Arm MaterialFiberglass Reinforced Nylon
MaterialBrass; Fiberglass Reinforced Nylon; Stainless Steel
Base Clamping Unit Height (in/ft/yd)6.38 in
Dimensions (Metric)39.40 mm W x 162.00 mm H
Maximum Handle Thickness (in/ft/yd)1.1 in
Maximum Handle Width (in/ft/yd)1.6 in
Maximum Service Temperature °C120 °C
Maximum Shackle Diameter (mm/cm/m)9.91 mm
Minimum Shackle Clearance - (mm/cm/m)20.00 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
