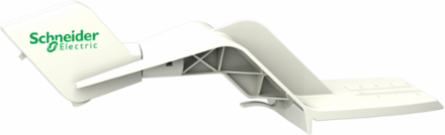

Schneider Electric GVAPL01 Laser Plotting Tool for TeSys Rotary Handle Mounting, 0.1 kg
- MPN: GVAPL01
- PPN: SCH-GVAPL01
CAD
$63.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The GVAPL01 Laser Plotting Tool by Schneider Electric is a specialized accessory designed for TeSys rotary handle mounting, enhancing the installation process with precision. Weighing just 0.1 kg, this tool integrates seamlessly into power distribution systems, ensuring that circuit breakers are mounted accurately and efficiently. With its innovative laser plotting capability, it allows for easy alignment and placement, making it a valuable addition for professionals seeking reliability and accuracy in their electrical installations.
Features
- Utilizing advanced optical alignment technology, this specialized tool projects a sharp laser line directly from the motor starter chassis onto the enclosure door. This visual path removes all manual guesswork and measurement errors, ensuring that the external rotary shaft meets the internal mechanism with flawless precision every single time.
- Engineered for ultimate job-site versatility, the tool is fully compatible with TeSys Deca (Frame 2 and Frame 3), TeSys GV2, TeSys GV3, and TeSys Ultra manual starter architectures. This comprehensive compatibility allows panel builders and industrial contractors to rely on a single alignment instrument for diverse motor control configurations, drastically reducing the number of specialized setup tools needed in their service kits.
- By guaranteeing perfect mechanical concentricity between the door handle and the deep-set breaker shaft, it completely eliminates operational friction and binding stresses. Preventing shaft misalignment actively stops premature internal mechanism wear and external door handle breakage, protecting expensive control panels from unexpected operating downtime and costly component replacements.
- Designed with an intuitive, self-locating footprint, the tool snaps directly onto the motor starter framework without requiring complicated mounts or technical calibration. This straightforward setup allows industrial electricians and control technicians to execute flawless door layouts in seconds, accelerating turnaround times on massive multi-enclosure builds and reducing labor overhead.
- Weighing a mere 0.22 lb (0.1 kg), this highly portable mounting accessory fits comfortably inside standard tool pouches or compact field cases. The robust, self-contained shell safely withstands the bumps, vibrations, and drops typical of harsh commercial construction and plant environments, ensuring long-term field reliability for ongoing installations.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Singapore, United States
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range Of Product
- TeSys GV2, TeSys GV3, TeSys U, TeSys Deca
- Local Publishable Date
- 2026-07-13
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 3
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- GVAP
- Product Or Component Type
- handle mounting tool
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Accessory / Separate Part Category
- mounting accessory
- Package Weight(Lbs)
- 261.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2207006
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1929
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility CodeGVAP
Product AvailabilityStock - Normally stocked in distribution facility
RangeTeSys
Sustainable PackagingYes
Pep CodeENVPEP2207006EN
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8205598000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI2207006
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2207006EN
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP2207006EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Range Of Product
- TeSys GV2, TeSys GV3, TeSys U, TeSys Deca
Product Or Component Typehandle mounting tool
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
