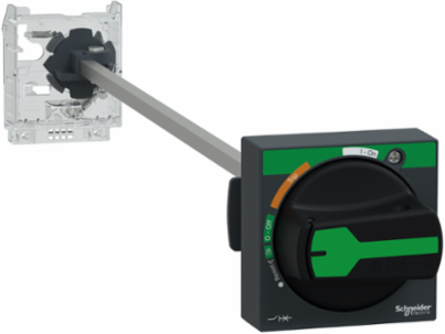

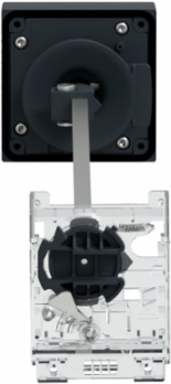

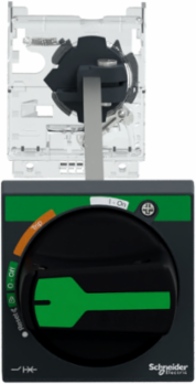

Schneider Electric GV2APN01 Extended Rotary Handle Kit, IP54, for GV2L/GV2P, 140-250 mm Adjustment
- MPN: GV2APN01
- PPN: SCH-GV2APN01
CAD
$91.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys GV extended rotary handle, for motor circuit breakers GV2L, GV2P mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 146-256mm). Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset). Green Premium compliant (RoHS/REACh).
Features
- Engineered specifically for Schneider Electric TeSys Deca Frame 2 systems, this kit provides direct mechanical compatibility with GV2L and GV2P manual starters and protectors. It includes a dedicated mounting adapter that screws directly onto the face of the breaker, ensuring a precise, slip-free interface that eliminates operational lag and component wear during manual switching.
- Featuring an adjustable hardware design, the included distance shaft easily spans a back-to-door depth range of 140 to 250 mm (5.5 to 9.8 inches). This allows industrial panel builders and plant technicians to customize the shaft length to match precise enclosure depths on the job site, eliminating the need to order separate, specialized mounting hardware for non-standard panels.
- Built to maintain a reliable environmental barrier, the door-mounted mechanism provides an IP54 protection rating against dust ingress and splashing water. This robust protection ensures your main distribution panels, motor control centers, and automation cabinets remain safe from airborne contaminants and humidity in demanding warehouse and industrial factory environments.
- Designed with a high-contrast grey front plate and an ergonomic black handle, this kit delivers distinct physical feedback across three clear positions: ON, OFF, and TRIP. When a motor fault occurs, the handle instantly moves to the distinct TRIP indication zone, allowing maintenance crews to visually audit the panel and isolate faults immediately without opening the live enclosure door.
- The robust locking mechanism accepts up to three individual padlocks simultaneously, allowing technicians to secure the device in either the ON or OFF position during critical servicing. Crucially, locking the handle in the ON position will not prevent the internal circuit breaker from safely tripping during an electrical overload, providing full equipment protection while conforming to rigid workplace safety compliance standards.
Documentation & Downloads
Specifications
Key Specifications
- Handle Front Plate Colour
- grey
- Handle Colour
- black
- Range
- TeSys || TeSys Deca
Accessory / Separate Part Categorycontrol accessory
Product Or Component Typerotary handle kit
Device Short NameGV2AP
Complementary
- Rotary Handle Mounting Style
- extended
- Locking Options Description
- 1 to 3 padlocks
- Rotary Handle Padlocking
- padlock in OFF position || padlock in ON position
Back/Door Distance140-250 mm
Net Weight0.2 kg
Product CompatibilityGV2P || GV2L
Environment
- Ip Degree Of Protection
- IP54
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectiveCompliant with Exemptions
