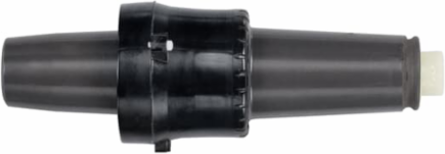

Thomas & Betts 3701A4 LB BUSHING INSERT 35KV 200A W/RING
- MPN: 3701A4
- UPC: 783786630516
- PPN: T-B-3701A4
- UNSPSC: 26121630
CAD
$314.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
35kV 200 Amp, Loadbreak Bushing Insert, rated for single phase applications only. Includes a black vent ring.
Specifications
Additional Information
| Application | Designed for use as an apparatus bushing interface |
|---|---|
| Effective Date | 19980115 |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | 8.93 inch (226.8 mm) long, 2.81 inch (71.3 mm) Diameter |
| Standards | ANSI/IEEE 386 |
| Brand / Label | Elastimold |
|---|---|
| Material | EPDM Rubber |
| Product Type | Bushing Insert |
| Special Functions | 35kV, 200 Amp Loadbreak Rated. Rated for Single Phase switching. Black vent ring. Includes hex-broach for torque installation. Peroxide-cured insulation and jacket. Provision for ground wire connection. |
| Temperature Range | -40 to +65 °C |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 1779 >> Cable accessories |
|---|
