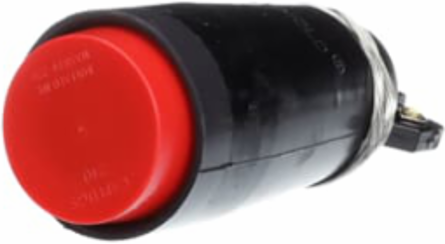

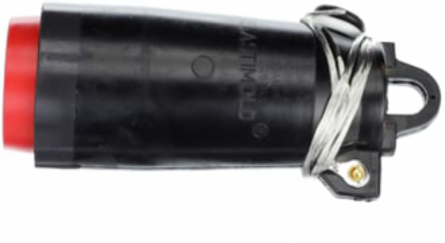

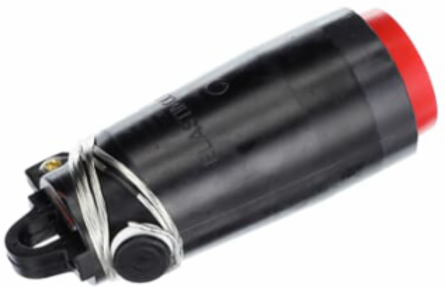

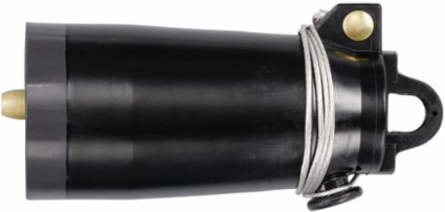

Thomas & Betts 273DRGA INSUL CAP W/GRND,CUFF W/O PROBE
- MPN: 273DRGA
- UPC: 783786640782
- PPN: T-B-273DRGA
- UNSPSC: 39121421
CAD
$164.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
200 Amp, 25kV, Insulated Cap with Ground, Equipped with Insulated Cuff, without Probe. White Band
Specifications
Additional Information
- Application
- Fully shielded, fully submersible, hot stick operable, separable connectors designed for energized operation.
- Color
- Black
- Effective Date
- 19980115
- Material
- Housing - EPDM Rubber
- Product Type
- Loadbreak Insulated Cap
- Special Functions
- 25kV, 200 Amp Loadbreak Rated. Molded EPDM Rubber. Includes all brass probe. Provision for hotstick operation. Ground lead wire #14 AWG attached. Insulated cuff for extra protection.
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Current Rating200 A
Insulation MaterialYes, EPDM Rubber
Product NameELECTRICAL INSULATOR
SizeDiameter 2.90 inch (73.7mm)
StandardsANSI/IEEE Standard 386
Voltage Rating25 kV
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4586 >> Electrical connector assembly
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
