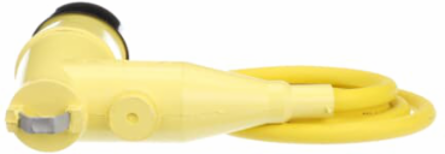

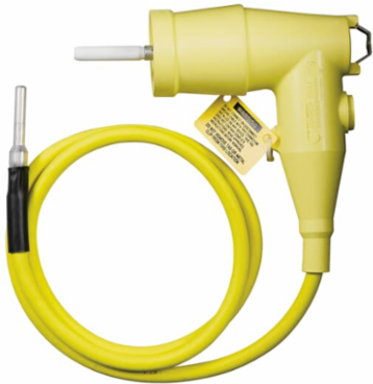

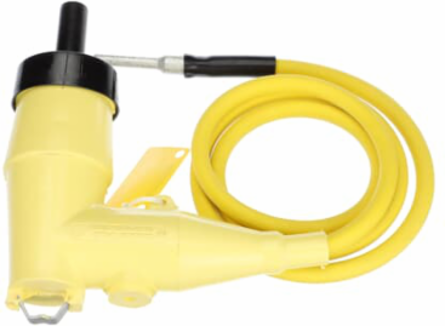

Thomas & Betts 370GLR LB GRDG ELBOW 35KV
- MPN: 370GLR
- UPC: 783786632299
- PPN: T-B-370GLR
- UNSPSC: 39121421
CAD
$952.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
35kV, 200 Amp, Loadbreak Grounding Elbow Connector with 600 Volt, 6 Foot, 1/0 AWG Stranded, Tinned Copper Ground Lead. Includes (1) Grounding Elbow, (1) Grounding Cable 1/0 AWG, Lubricant, Installation Instructions and (1) Protective Shipping Cap. Body of Connector is 7.40 inch wide and 7.53 inch from Bottom Edge to Center of Probe.
Specifications
Additional Information
| Application | 25 thru 35kV Applications |
|---|---|
| Color | Yellow |
| Current Rating | 200 A |
| Includes | Grounding Elbow, Grounding Cable 1/0 AWG, Protective Shipping Cap, Lubricant and Installation Instructions |
| Material | Housing - EPDM Rubber |
| Product Type | Loadbreak Grounding Elbow Connector |
| Special Functions | Stainless Steel Pulling Eye |
| Temperature Range | 90 °C |
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Push-In |
| Effective Date | 19980108 |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | PRIMARY CABLE ACC. 200 SEP CON |
| Size | Body 7.40 inch wide (without Probe), 6 foot 1/0 AWG Ground Lead |
| Standards | ANSI/IEEE Standard 386 |
| Voltage Rating | 35 kV |
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
