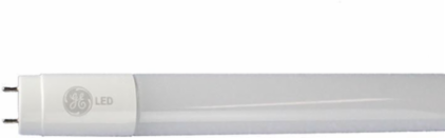

Current Lighting Solutions 93150745 LED Type B Double Ended T8 Glass Tubes
- MPN: 93150745
- UPC: 662049522297
- PPN: GEL-93150745
- UNSPSC: 39112102
CAD
$11.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
LED Type B Double Ended T8 Glass Tubes
Features
- Direct wire to bypass the ballast to reduce energy use and eliminate ballast compatibility
- Safety First: 1) Internal safety switch (protects installer), 2) Internal misapplication circuit (protects end-user), 3) Optional In-line fuse kit (protects future installer)
- Complete offering for everyday applications and additional premium performance/long life options available
- 50,000 hour life with 5 year warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Bulb Base Type
- G13
- CCT (K)
- 3500 K
- CRI
- 80 CRI
- Dimmable
- No
- Category
- LED Tubes
- Location Rating
- Damp
- Lumen Range
- 2,100 lm
- MOL (In)
- 48 in
- Operating Temperature
- -20 to 45 °C
- SAP Material Number
- 93150745
- Technology Type
- LED
- Voltage (V)
- 120-347 V
- Wattage
- 15 W
Base TypeG13
Bulb ShapeT8
Connect Family NameLED Type B Double Ended T8 Glass Tubes
Diameter1 in
Efficacy (LPW)140 LPW
Length Metric1219.2
Lumen Maintenance RatingL70 @ 50,000 hours
Lumens2,100 lm
Operating Life (Hrs)50,000 hr
Safety CertificationcULus
Suggested Traditional ReplacementLFL;
UL Type A, B, CType B
Warranty5 year limited warranty
ARRA CompliantContact Manufacturer
