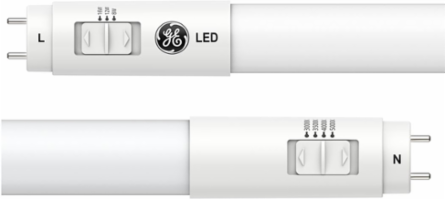

Current Lighting Solutions 93313525 LED Type B Double Ended T8 Glass Tubes
- MPN: 93313525
- UPC: 662049525441
- PPN: GEL-93313525
- UNSPSC: 39112102
CAD
$12.61
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
LED Type B Double Ended T8 Glass Tubes
Features
- Direct wire to bypass the ballast-reduces energy use and eliminates ballast compatibility
- Safety First: 1) Internal safety switch (protects installer), 2) Internal misapplication circuit (protects end-user), 3) Optional In-line fuse kit (protects future installer)
- Complete offering for everyday applications and additional premium performance/long life options available
- LumenChoice Selectable wattage/lumen and SpectraChoice Selectable color temperature with built-in switch
- 70,000 hour life with 7 year warranty
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Bulb Base Type
- G13
- CCT (K)
- 3000 K/3500 K/4000 K/5000 K
- CRI
- 80 CRI
- Dimmable
- No
- Category
- LED Tubes
- Location Rating
- Damp
- Lumen Range
- 1,650 lm/2,050 lm/2,550 lm
- MOL (In)
- 48 in
- Operating Temperature
- -20 to 45 °C
- SAP Material Number
- 93313525
- Technology Type
- LED
- Voltage (V)
- 120-347 V
- Wattage
- 10 W/13 W/16 W
Base TypeG13
Bulb ShapeT8
Connect Family NameLED Type B Double Ended T8 Glass Tubes
Diameter1 in
Efficacy (LPW)165 LPW/158 LPW/159 LPW
Length Metric1219.2
Lumen Maintenance RatingL70 @ 70,000 hours
Lumens1,650 lm/2,050 lm/2,550 lm
Operating Life (Hrs)70,000 hr
Safety CertificationcULus
Suggested Traditional ReplacementLFL;
UL Type A, B, CType B
Warranty7 year limited warranty
