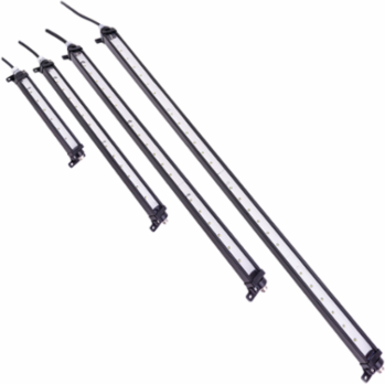

nVent Hoffman LEDHL24V12 Hazardous Location LED Light Strip, 13.56x1.69x2.69 Inch, Aluminum
- MPN: LEDHL24V12
- UPC: 783510271565
- PPN: HOF-LEDHL24V12
- UNSPSC: 39121321
CAD
$819.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Hazardous Location LED Strip Lights provide enclosure illumination in hazardous environments. This Hazardous Location LED Light Strip, LEDHL24V12 item measures 13.56x1.69x2.69 inches with a material of Aluminum.
Features
- Direct transfer of heat from PCB to the casing to maximize lifetime and reliability
- Operating temperature of -40 F (-40 C) to 140 F (60 C)
- Easy installation with included mechanical assembly kit while maintaining enclosure rating up to UL Type 4X
- Includes 3-ft connect cable with flying leads
- Maximum lighting for control panels with 578 to 2,351 lumens and 5,000K color temperature
- Linear drive circuit with no flicker or high frequency electronic noise
- Easy field angle adjustment with mounting bracket
- Wide beam optics with 100 degree angle of illumination
- Available in 12, 24, 36, and 48-inch lengths
Documentation & Downloads
Specifications
Additional
- Light Output
- 578 lumens
- Input Voltage DC
- 22 VDC
- Size
- 13.56 x 1.69 x 2.69 in
- Material
- Aluminum
- Accessory Type
- Lighting
- Beam Angle
- 100 degrees
- Operating Temperature
- -40 F to 140 F (-40 C to 60 C)
- Enclosure Rating
- UL Type 4X
Current0.4 A
Power11W (12 in length)
Weight2.5 lbs
FinishBrushed
Works WithNEMA & IEC
Color Temperature5,000K
Cable Length3 ft
Lengths Available12, 24, 36, 48 in
