nVent Hoffman LEDHL24V24 Hazardous Location LED Light Strip 25.06 Inch x 1.69 Inch Aluminum, 1172 Lumens
- MPN: LEDHL24V24
- UPC: 783510271572
- PPN: HOF-LEDHL24V24
- UNSPSC: 39121321
CAD
$1213.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Hazardous Location LED Strip Lights provide enclosure illumination in hazardous environments. This Hazardous Location LED Light Strip, LEDHL24V24 item measures 25.06x1.69x2.69 inches with a material of Aluminum.
Features
- Direct transfer of heat from PCB to the casing to maximize lifetime and reliability
- Operating temperature of -40 F (-40 C) to 140 F (60 C)
- Easy installation with included mechanical assembly kit while maintaining enclosure rating up to UL Type 4X
- Includes 3-ft connect cable with flying leads
- Maximum lighting for control panels with 578 to 2,351 lumens and 5,000K color temperature
- Linear drive circuit with no flicker or high frequency electronic noise
- Easy field angle adjustment with mounting bracket
- Wide beam optics with 100 degree angle of illumination

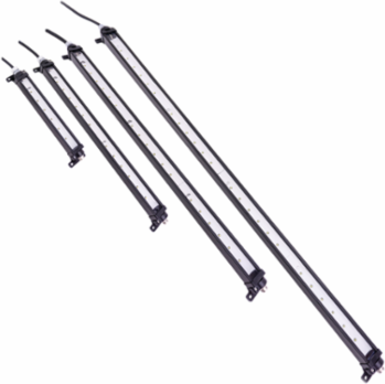

- Available in 12, 24, 36, and 48-inch lengths
Documentation & Downloads
Specifications
Additional
- Input Voltage DC
- 22 V
- Light Output
- 1,172 lumens
- Beam Angle
- 100 degrees
- Size
- 25.06 x 1.69 x 2.69 in
- Material
- Aluminum
- Works With
- NEMA & IEC
Current0.75 A
Color Temperature5000K
Operating Temperature Range-40 F to 140 F (-40 C to 60 C)
Weight3.5 lb
FinishBrushed
