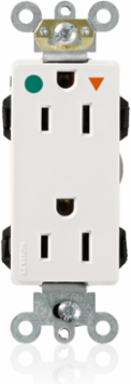

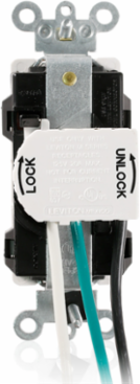

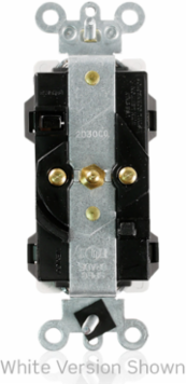

Leviton MD820-IGW Lev-Lok Decora Plus Isolated Ground Duplex Receptacle, 15 Amp, 125 Volt, Hospital Grade
- MPN: MD820-IGW
- UPC: 078477510766
- PPN: LEV-MD820-IGW
CAD
$40.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Lev-Lok Decora Plus Isolated Ground Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Smooth Face, 15 Amp, 125 Volt, Modular, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - White Mating Lev-Lok Wiring Module Required for Use Lev-Lok Savings Calculator
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| RoHS | Compliant |
| UL Fed Spec WC-596 | File E13399 |
| CSA C22.2 No. 42 | File 152105 |
|---|---|
| NOM | 057 |
| UL 498 | File E13399 |
| Warranty | 10-Year Limited |
Material Specifications
| Body Material | Nylon |
|---|---|
| Face Material | Nylon |
| Isolated Ground System | Brass |
| Locking Pins | Solid Brass |
| Strap Material | Galvanized Steel |
| Color | White |
|---|---|
| Ground Clips | Brass |
| Line Contacts | 0.040” Thick Solid Brass |
| Shutter Mechanism | Delrin® Acetal |
Mechanical Specifications
| Lead Identification | Leads identified in accordance with UL 498 (black, white & green) |
|---|---|
| Termination | Modular |
| Product ID | Markings are permanently marked on device |
|---|
Product Features
| Brand | Lev-Lok Decora Plus |
|---|---|
| Feature 4 | Smooth Face |
| Grade | Heavy-Duty Hospital Grade |
| Device Type | Duplex Receptacle Outlet |
|---|---|
| Function | Isolated Ground |
Environmental Specifications
| Flammability | Rated V-2 per UL94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 125 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Self-Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
AC Horsepower Ratings
| Horsepower Rating | 1/2 HP |
|---|
