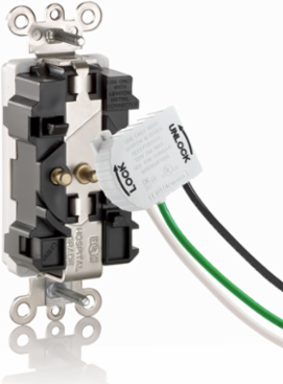

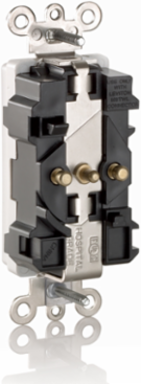

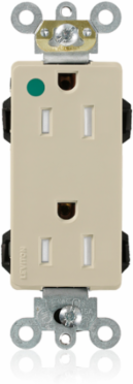

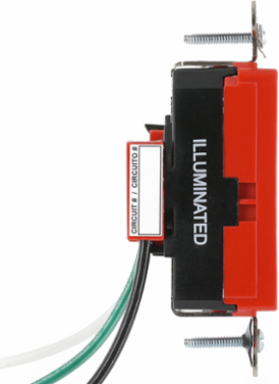

Leviton M1626-ILI 15 Amp Hospital Grade Duplex Receptacle, Illuminated, Nylon, Self-Grounding

MPN: M1626-ILI
UPC: 078477592908
PPN: LEV-M1626-ILI

$42.52

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Lev-Lok Decora Plus Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Illuminated, Smooth Face, 15 Amp, 125 Volt, Modular, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Ivory Mating Lev-Lok Wiring Module Required for Use Lev-Lok Savings Calculator

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

RoHS Compliant	False

Standards and Certifications

ANSI	C-73
NEMA	WD-1 & WD-6
RoHS	Compliant
Warranty	10-Year Limited

CSA	152105
NOM	057
UL 498 and Fed Spec WD496	E13399

Material Specifications

Body Material	Nylon
Ground Clips	Nickel-Plated Brass
Locking Pins	Solid Brass

Face Material	Nylon
Line Contacts	0.040" Brass
Strap Material	Nickel-Plated Brass

Mechanical Specifications

Lead Identification	Leads identified in accordance with UL 498 (black, white & green)
Termination	Modular

Product ID	Markings are permanently marked on device

Product Features

Brand	Lev-Lok Decora Plus
Device Type	Duplex Receptacle Outlet
Feature 4	Smooth Face

Color	Ivory
Feature 3	Illuminated
Grade	Extra Heavy-Duty Hospital Grade

Environmental Specifications

Flammability	Rated V-2 per UL94

Operating Temperature	-40°C to 60°C

Electrical Specifications

Amperage	15 A
Dielectric Voltage	Withstands 2000V per UL498
Illumination	100,000 HR Green LED's
Temperature Rise	Max 30C after 250 cycles OL at 200 percent rated current
Wire	3
