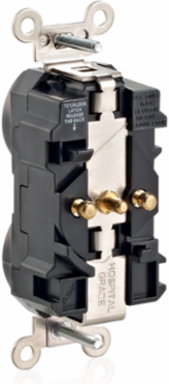

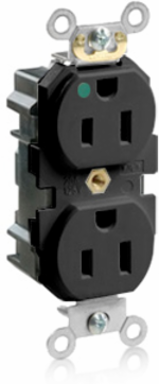

Leviton M8200-HE Heavy-Duty Hospital Grade Duplex Receptacle, 15 Amp, 125 Volt, NEMA 5-15R

MPN: M8200-HE
UPC: 078477456170
PPN: LEV-M8200-HE

$20.64

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

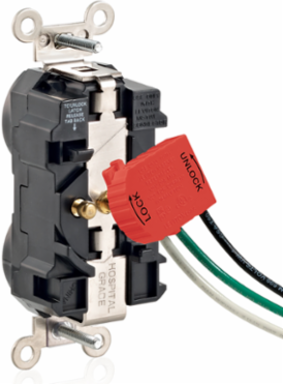

Lev-Lok Duplex Receptacle Outlet, Heavy-Duty Hospital Grade, Smooth Face, 15 Amp, 125 Volt, Modular, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Black Mating Lev-Lok Wiring Module Required for Use Lev-Lok Savings Calculator

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

RoHS Compliant	False

Standards and Certifications

ANSI	C-73
NOM Certified	057
cULus	Listed

NEMA	WD-1 & WD-6
Warranty	10-Year Limited

Material Specifications

Base Material	Nylon
Cover Material	Nylon
Line Contacts	0.040” Thick Solid Brass
Mounting Screws	Triple Combination Head, Steel

Bushing	Solid Brass
Ground Clips	Brass
Locking Pins	Solid Brass
Mounting Strap	Galvanized Steel with Riveted Ground Contacts

Mechanical Specifications

Product ID	Ratings are permanently marked on device

Termination	Modular

Product Features

Brand	Lev-Lok
Device Type	Duplex Receptacle Outlet
Grade	Heavy-Duty Hospital Grade

Color	Black
Feature 4	Smooth Face

Environmental Specifications

Flammability	Rated V-2 per UL94

Operating Temperature	-40°C to 60°C

Electrical Specifications

Amperage	15 A
Dielectric Voltage	Withstands 2000V per UL498
Maximum Working Voltage	125V as rated
Temperature Rise	Max 30C after 250 cycles OL at 200 percent rated current
Wire	3
