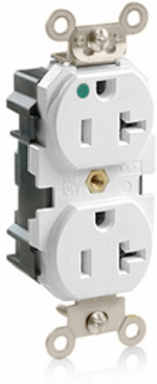

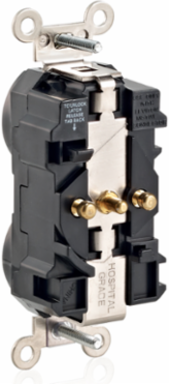

Leviton M8300-W Lev-Lok 20 Amp Duplex Receptacle, Extra Heavy-Duty Hospital Grade, 125 Volt
- MPN: M8300-W
- UPC: 078477363836
- PPN: LEV-M8300-W
CAD
$33.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Lev-Lok Duplex Receptacle Outlet, Extra Heavy-Duty Hospital Grade, Smooth Face, 20 Amp, 125 Volt, Modular, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White Mating Lev-Lok Wiring Module Required for Use Lev-Lok Savings Calculator
Features

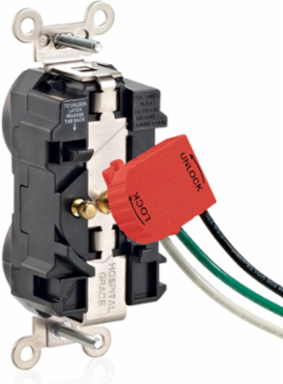

- The Lev-Lok® Modular Wiring Device System is engineered for fast and easy installation. These devices employ a simple twist and lock wiring module that ensures a safe, reliable connection while at the same time providing for extremely fast and easy installation. Lev-Lok brand wiring devices address the reliability and performance concerns of specification engineers without sacrificing the contractor's need for fast, easy installation.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANCE NOM
- 057
- CSA C22.2 No. 42
- File 152105
- NOM Certified
- 057
- UL498HG
- File E13399
- cULus
- Listed
ANSIC-73
NEMAWD-1 & WD-6
UL Fed Spec WC-596File E13399
Warranty10-Year Limited
Material Specifications
- Base Material
- Nylon
- Cover Material
- Nylon
- Line Contacts
- 0.040” Thick Solid Brass
- Mounting Screws
- Triple Combination Head, Steel
- Yoke
- Nickel-Plated Brass
BushingSolid Brass
Ground ClipsNickel-Plated Brass
Locking PinsSolid Brass
Mounting StrapSingle Piece Nickel-Plated Brass with integral ground contact
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
TerminationModular
Product Features
- Brand
- Lev-Lok
- Device Type
- Duplex Receptacle Outlet
- Grade
- Extra Heavy-Duty Hospital Grade
- Strap Material
- Nickel Plated Brass
ColorWhite
FeatureSmooth Face
Standards and CertificationsC-UL-US
Environmental Specifications
- Operating Temperature
- -40°C to 60°C
Electrical Specifications
- Amperage
- 20 A
- Current Limiting
- Full Rated Current
- Grounding
- Self-Grounding
- Pole
- 2
- Voltage
- 125 VAC
Current InterruptingCertified for current interrupting at full rated current
Dielectric VoltageWithstands 2000V per UL498
Maximum Working Voltage125V as rated
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- Horsepower Rating
- 1 HP
